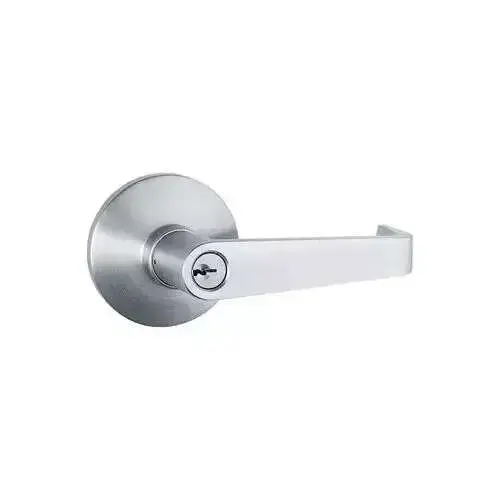

Imperial USA ED-LHL500-US26D Brushed Chrome Commercial Entry Lever Trim with Lock for Panic Exit Device
Item #: ED-LHL500-US26D by Imperial USA
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Alternate Part Number-1
127294
Product Overview
The ED-301 “crash bar” style exit device are suitable for narrow, medium, or wide stile aluminum and hollow metal doors. It is designed for all heavy duty commercial and industrial applications. It is non-handed with a contoured cross bar that will fit doors up to 36" and can be field measured to accommodate narrow doors.
Specifications ED-301
•ANSI A156.3 Grade 2
•Contoured aluminum
•Stainless Steel springs
•Latch Case: 1 1/4" w x 7 1/4" l with 1/2" throw Backset: 1 5/32"
•Strike: rim mounted roller strike with shim Projection: 4 1/2"
•Stile: 2" minimum
•Non handed
•Door thickness: 1 3/4" standard
•Door width: up to 36" and shoulder mounting studs with set screws.
•Thumbturn dogging
•Warranty: 1 year
•Finishes: AL, DU
The ED-VR331 panic devices blend the utility of a vertical rod application with the appearance of a traditional panic device. it is non-handed and reversible with a contoured cross bar that will fit doors up to 36".
Specifications ED-VR331
•ANSI A156.3 Grade 2
•Contoured aluminum
•Interlocking top and pullman bottom latch
•Non handed
•Door thickness: 1 3/4" standard
•Door width: up to 36"
•Door height: up to 7'
•Fasteners: furnished with sheet metal, machine screws and shoulder mounting studs with set screws. 12" Extension Rod available
•Warranty: 1 year
•Finishes: AL, DU
Specifications ED-301
•ANSI A156.3 Grade 2
•Contoured aluminum
•Stainless Steel springs
•Latch Case: 1 1/4" w x 7 1/4" l with 1/2" throw Backset: 1 5/32"
•Strike: rim mounted roller strike with shim Projection: 4 1/2"
•Stile: 2" minimum
•Non handed
•Door thickness: 1 3/4" standard
•Door width: up to 36" and shoulder mounting studs with set screws.
•Thumbturn dogging
•Warranty: 1 year
•Finishes: AL, DU
The ED-VR331 panic devices blend the utility of a vertical rod application with the appearance of a traditional panic device. it is non-handed and reversible with a contoured cross bar that will fit doors up to 36".
Specifications ED-VR331
•ANSI A156.3 Grade 2
•Contoured aluminum
•Interlocking top and pullman bottom latch
•Non handed
•Door thickness: 1 3/4" standard
•Door width: up to 36"
•Door height: up to 7'
•Fasteners: furnished with sheet metal, machine screws and shoulder mounting studs with set screws. 12" Extension Rod available
•Warranty: 1 year
•Finishes: AL, DU
