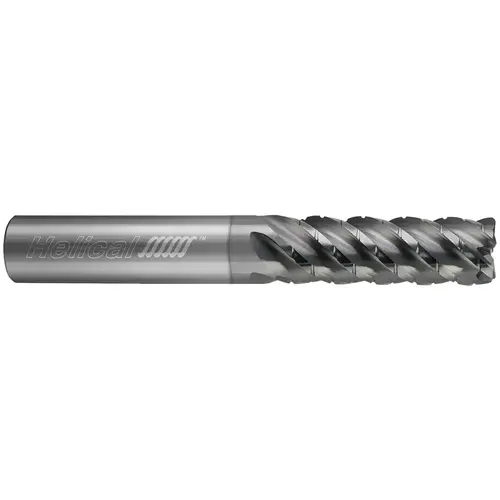

Corner Radius End Mill: 1/2" Dia, 5/8" LOC, APLUS Coated, Proprietary, Corner Radius End, Series HEV-7

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Helical Solutions 83384Click To Copy Corner Radius End Mill: 1/2" Dia, 5/8" LOC, APLUS Coated, Proprietary, Corner Radius End, Series HEV-7

Item #: 83384 by Helical Solutions

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$148.79

/each
SAVE UP TO 14.88

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 4 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

For Use With

High Precision Toolholders

Flute Type

Spiral

Material Application

Low-Alloy Steel

Shank Type

Straight-Cylindrical

End Type

Corner Radius

Number of Flutes

7

Pitch

Variable

Chipbreaker

No

Length Type

Stub

Cutting Direction

Right Hand

Series

HEV-7

Variable Helix

No

Coating/Finish

APLUS

Coolant Through

No

Corner Radius (Decimal Inch)

0.0100

Length Of Cut (Decimal Inch - 4 Decimals)

0.6250

Length of Cut (Inch)

5/8

Overall Length (Decimal Inch)

2.5000

Overall Length (Inch)

2-1/2

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Shank Diameter (Decimal Inch)

0.5000

Shank Diameter (Inch)

1/2

UNSPSC Code

27112803

Vendor Drop Ship

N

Centercutting

No

Coating Classification

PVD

End Mill Material

Solid Carbide

Extended Reach

No

Flute Direction

Right Hand

Material Removal Type

Roughing & Finishing

Mill Diameter (Decimal Inch)

0.5000

Mill Diameter (Inch)

1/2

Secondary Workpiece Material

Stainless Steel

Single Or Double End

Single

Variable Index

Yes

Secondary Workpiece Material Code

M

Mill Diameter Tolerance

-0.0020/0.0000 in

Overall Length Tolerance

-0.0620/0.0620 in

TIR Maximum (Decimal Inch)

0.0005

Shank Diameter Tolerance

h6

Corner Radius Tolerance

-0.0020 to 0.0020 in

Proprietary Coating Designation

Proprietary

Product Overview
Corner Radius End Mill: 1/2" Dia, 5/8" LOC, APLUS Coated, Proprietary, Corner Radius End, Series HEV-7 2-1/2" OAL, APLUS Coated, Corner Radius End, Noncentercutting, Series HEV-7
