Hager 149652 2942 ALM 1200LB MAGNETIC LOCK - Single 1200 lbs holding force

Item #: 149652 by Hager

UPC #: 798550496526

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Warranty

1 Year

Product Overview

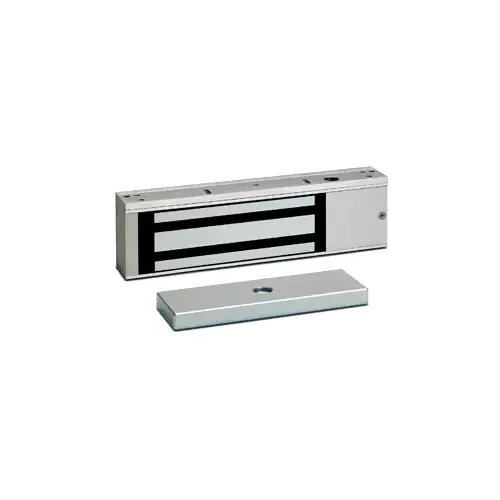

2942 ALM 1200LB MAGNETIC LOCK
SPECS :

Applications:

  • For perimeter and interior door security and access control
  • For system integrators, distributors, installers, and building owners presently using low cost import or private label brand access control hardware

Certifications: ANSI/BHMA A156.23 Grade 1 Compliant

Electrical Specifications:

  • 500mA @ 12VDC | 250mA @ 24VDC - Power Input (Field Selectable)
  • SPDT, dry 500mA @ 30VDC - Door Status Sensor
  • SPDT, dry 2A @ 30VDC - Lock Status Sensor

Features:

  • Interlocking quick mount assembly reduces installation time
  • Door Status Sensor
  • Lock Status Sensor
  • Wire access chamber with terminal block
  • PC board with voltage and current spike protection, instant release anti-residual magnetism circuit

Holding Force: 1200 lbs

LEDIndicators:

  • Red - Energized & Unsecured
  • Green - Energized & Secure

Mounting Kits:

  • 2-679-0100 - Top jamb kit
  • 2-679-0102 - Glass Door Kit
  • 2-679-0104 - Adjustable Angle Bracket
  • 2-679-0106 - Angle Bracket
  • 2-679-0107 - Stop Filler Plate
  • 2-679-0108 - Stop Filler Plate

Product Name: Magnetic Lock 1200 lbs Holding Force

Product Number: 2942
