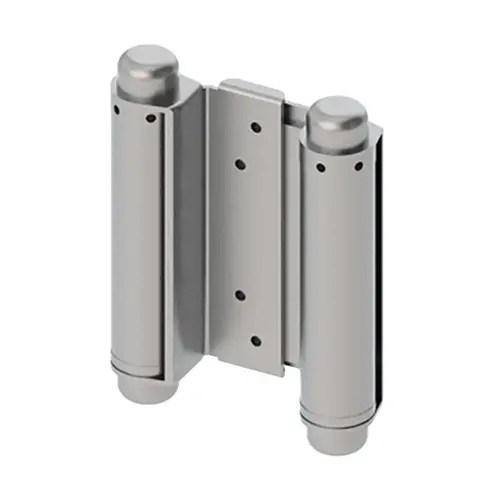

Hager 126816 6" Hinges Primed for Painting

Item #: 126816 by Hager

UPC #: 798550268161

See reviewsSee reviews
In Stock

$37.37

/each
SAVE UP TO 3.74

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Hinges are manufactured in accordance with ANSI/BHMA A156.1. Self-closing hinges and pivots are in accordance with ANSI/BHMA A156.17 using three hinges per opening on a 3’0” x 7’0” x 1-3/4” (914 mm x 2134 mm x 44 mm) door.
  • Round corners are available in 1/4” (6 mm) (standard) or 5/8” (16 mm) radius.
  • Full Mortise Both leaves are mortised, one leaf in the door and one leaf in the frame (wood door or hollow metal door with wood frame or hollow metal frame). Example: BB1279, 4-1/2” x 4-1/2” (114 mm x 114 mm), US26D
  • Half Mortise One leaf is mortised in the door and the other is surface applied to the frame (hollow metal door with channel iron frame). Example: BB1109, 4-1/2” (114 mm), US26D
  • Full Surface Both leaves are applied to the surface, one to the door and the other to the frame (metal core door or hollow metal door with channel iron frame). Example: BB2171, 5” (127 mm), USP
  • Half Surface One leaf is mortised in the frame and the other is surface applied to the face of the door (wood door with wood frame or metal core door with hollow metal frame) Example: BB1163, 5” (152 mm), US26D

Finish

Primed for Paint

Door Thickness

3/4" - 2" (See Size Options For Fastener Information)

Finish Description

Primed for Paint

Hinge Size

6 Inch

Product Material

Steel

Product Type

Hinge/Pivot

Series

1303 Series

Material

Steel

Warranty

Lifetime limited

Aluminium Bottle Contents

Swinging

ProductType

Manual

Grade

ANSI/BHMA Grade 1

Maximum Door Height

See Size Option Chart

Pin Type

Non-Removable

Mount

Full Mortise

Maximum Door Weight

100 lbs

Maximum Door Width

3'

Hinge Type

Double Acting

Bearing Type

Spring

ADA Compliant

No

Finish Family

Prime

Included Components

Fasteners/Screws

Standards

ANSI K81041

Fastener Size

10 x #10 x 1-1/4 in FPH WS

Hinge Weight

Standard

Function Family

Hinge/Pivot

Features

3 Hinges Required Per Door; Full Surface

Function

Spring Hinge

Manufacturer Parent

Hager Companies

Box Dimensions (L x W x H)

4.93x12.18x12.93

Sub-Series

HP_Spring_Hinges_hager_4

Maximum Door Thickness

See Size Option Chart

Fasteners

  • 6" - #10 x 1-1/4" FPH WS = 10 each
  • 5" - #8 x 1-1/4" FPH WS = 10 each
  • 4" - #6 x 3/4" FPH WS = 8 each
  • 3" - #6 x 3/4" FPH WS = 6 each

Notes

  • Hinges per door: 3
  • Not for use on doors with beveled hinge edge or half doors

HINGE HEIGHT in. - COMMERCIAL

6

HINGE FINISHES - COMMERCIAL

USP - PRIMED FOR PAINTING

Color

Primed for Painting

Color Code

600/USP
