Flat Track Sliding System, Slido D-Line42 100S Set 8' 2 7/16" 2500 mm For 1 Sliding Wood Door, 2.5 m Length, black Steel Plastic, Graphite black

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 941.32.004Click To Copy Flat Track Sliding System, Slido D-Line42 100S Set 8' 2 7/16" 2500 mm For 1 Sliding Wood Door, 2.5 m Length, black Steel Plastic, Graphite black

Item #: 941.32.004 by Hafele

See reviewsSee reviews
See reviews summary
In Stock

$230.62

/set
SAVE UP TO 23.06

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 70 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Rustic sliding door fitting in graphite black finish
  • Visible functional details

Length

8' 2 7/16"

Model

100S

For Door Height

108"

For Door Thickness

35 – 45 mm

For Door Width

Up to 48"

For door material

wood

Number of doors per system max.

1

Running track length

2500 mm

Adjustment facility

Not height adjustable

Supplied with

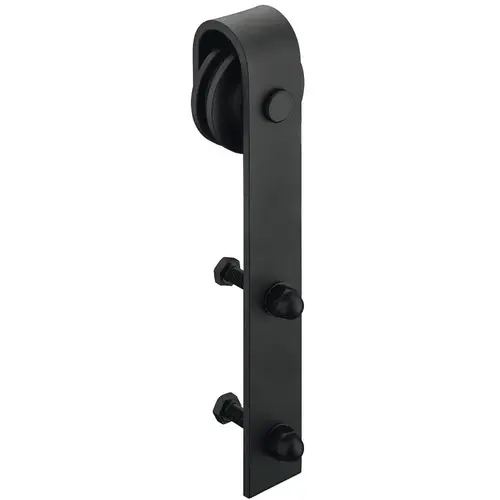

Straight hanger Upper running track Track stoppers Wall attachment Anti-derail block Floor guide Hexagon key Drill bit

For door thickness max.

1 3/4"

For door weight

≤100 kg

Running gear version

Running gear with anti-derailment device

Door weight max.

220 lbs

Material/finish

Steel Plastic, Graphite black

Load bearing capacity

220 lbs.

Door processing

for screw fixing

Controller installation options

Wall mounting

Installation reference

Running track can be cut to size on site. The cutting edge must then be reworked (ground and colour adapted).Drilling distances for wall mounting the 2000 mm running track: 100/450/450/450/450/100, pre-drilled 5 times Drilling distances for wall mounting the 2500 mm running track: 125/450/450/450/450/450/125, pre-drilled 6 times

For door thickness min.

1 3/8"

Number of Doors

1

Installation

Positive clamping of the door wing

Functionality

with anti-derailment device

Running position

Top

Area of application

For 1 doors

Product Overview
Flat Track Sliding System, Slido D-Line42 100S Set 1001 – 1,250 mm 8' 2 7/16" 100-S 2,500.00 mm For 1 Sliding Wood Door, 2.5 m Length, black
