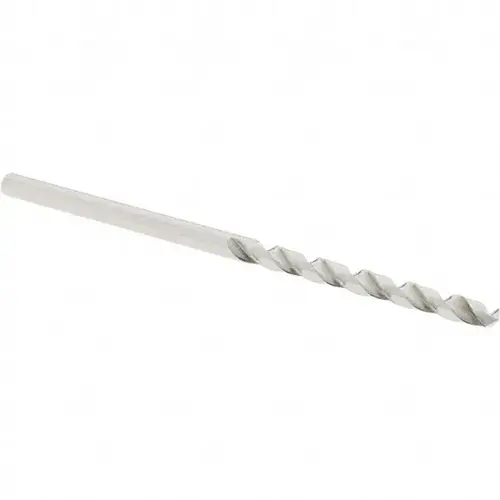

Jobber Length Drill Bit: #44, 118 degree, Cobalt

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Guhring 9.05523E+12Click To Copy Jobber Length Drill Bit: #44, 118 degree, Cobalt

Item #: 9.05523E+12 by Guhring

See reviewsSee reviews
See reviews summary
In Stock

$8.85

/each
SAVE UP TO 0.89

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 33 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

53.00

Number of Flutes

2

Standards

DIN 338

Cutting Direction

Right Hand

Series

5523

Point Type

Four Facet

Drill Bit Material

Cobalt

Spiral Type

Regular

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.0860

Drill Bit Size (Wire)

#44

Drill Bit Size Range (Decimal Inch)

0.0500 - 0.1000

Drill Point Angle (Degrees)

118

Flute By Diameter Ratio

5xD

Flute Length (mm)

27.00

Material Grade

M35

Maximum Drilling Depth (Decimal Inch)

0.9340

Primary Workpiece Material

Aluminum

Primary Workpiece Material Code

K

Shank Diameter (mm)

2.18

Shank Length (mm)

26.00

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

+0.000 to -0.014 mm

Drill Bit Finish/Coating

Bright/Uncoated

Maximum Drilling Depth (mm)

23.73

Specification Designation

DIN

Specification Number

DIN 338

Web Configuration

Tapered

Web Thinning

Web-Thinned

Product Overview
Jobber Length Drill Bit: #44, 118 degree, Cobalt Bright Coated, 53 mm OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 5523
