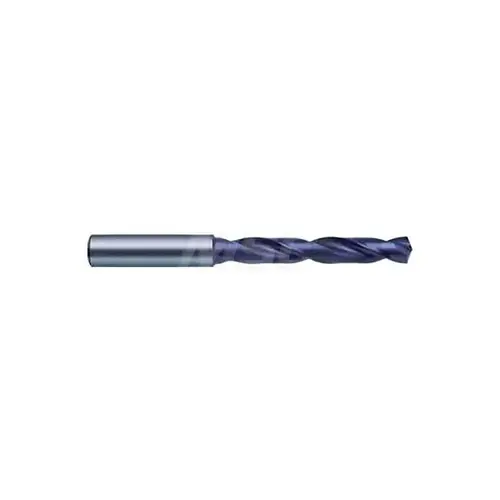

Guhring 9.05515E+12Click To Copy Jobber Length Drill Bit: 4.2 mm Dia, 140 degree, Solid Carbide
Item #: 9.05515E+12 by Guhring
See reviewsSee reviews
In Stock
$146.01
/eachSAVE UP TO 14.60
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 25 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Web Thinning
Web-Thinned
Web Configuration
Tapered
Specification Number
DIN 6537L
Specification Designation
DIN
Maximum Drilling Depth (mm)
29.70
Drill Bit Size Range (mm)
4.00 - 5.00
Drill Bit Finish/Coating
FIREX
Drill Bit Diameter Tolerance
0.004 to 0.016 mm
Vendor Drop Ship
N
UNSPSC Code
23241634
Shank Length (mm)
36.00
Shank Diameter (mm)
6.00
Primary Workpiece Material Code
K
Primary Workpiece Material
Cast Iron
Maximum Drilling Depth (Decimal Inch)
1.1690
Material Grade
Submicron
Flute Length (mm)
36.00
Flute By Diameter Ratio
5xD
Drill Point Angle (Degrees)
140
Drill Bit Size Range (Decimal Inch)
0.1500 - 0.2000
Drill Bit Size (mm)
4.20
Drill Bit Size (Decimal Inch)
0.1654
Drill Bit Grade
High Performance
Coolant Through
No
Tool Application
Self-Centering
Spiral Type
Regular
Drill Bit Material
Solid Carbide
Point Type
SU
Series
5515
Cutting Direction
Right Hand
Standards
DIN 6535
Number of Flutes
2
Overall Length (mm)
74.00
Shank Type
Straight-Cylindrical
Flute Type
Spiral
Product Overview
Jobber Length Drill Bit: 4.2 mm Dia, 140 degree, Solid Carbide FIREX Coated, 74 mm OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 5515
