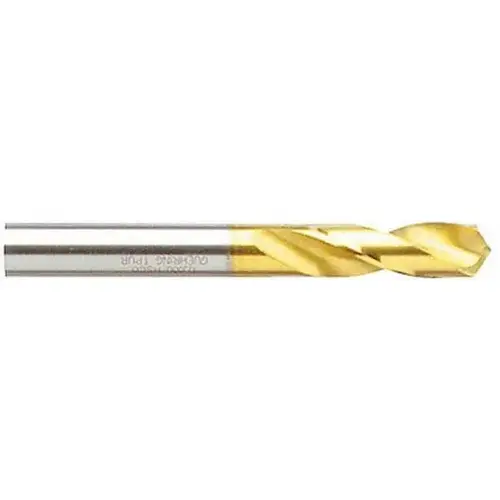

Screw Machine Length Drill Bit: 0.2902" Dia, 130 degree, Cobalt Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Guhring 9.00659E+12Click To Copy Screw Machine Length Drill Bit: 0.2902" Dia, 130 degree, Cobalt Coated

Item #: 9.00659E+12 by Guhring

See reviewsSee reviews
See reviews summary
In Stock

$62.90

/each
SAVE UP TO 6.29

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Parabolic

Shank Type

Straight-Cylindrical

Overall Length (mm)

74.00

Number of Flutes

2

Standards

DIN 1897

Tool Material

Cobalt

Cutting Direction

Right Hand

Series

659

Point Type

Standard

Drill Length Type

Stub

Coating/Finish

Coated

Coolant Through

No

Drill Bit Grade

Heavy Duty

Drill Bit Size (Decimal Inch)

0.2902

Drill Bit Size Range (Decimal Inch)

0.2500 to 0.3000

Flute By Diameter Ratio

3xD

Flute Length (mm)

34.00

Maximum Drilling Depth (Decimal Inch)

0.9040

Overall Length (Decimal Inch)

2.9134

Primary Workpiece Material

Titanium Alloy

Shank Diameter (Decimal Inch)

0.2902

Shank Length (Decimal Inch)

1.5748

Shank Length (mm)

40.00

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

+0.000 to -0.022 mm

Drill Bit Size (Letter)

L

Drill Point Angle

130

Maximum Drilling Depth (mm)

22.95

Specification Designation

DIN

Specification Number

DIN 1897

Web Configuration

Parallel

Web Thinning

Web-Thinned

Product Overview
Screw Machine Length Drill Bit: 0.2902" Dia, 130 degree, Cobalt Coated, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 659
