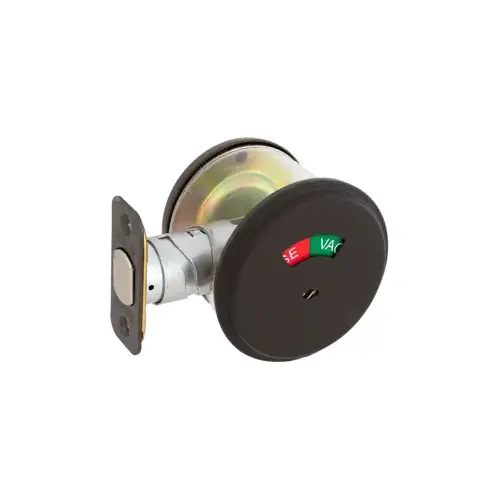

Schlage Commercial B571 613 Grade 2 Occupancy Indicator Deadbolt with 12287 Latch and 10094 Strike Oil Rubbed Bronze Finish
Item #: B571 613 by Schlage Commercial
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Door Bolt Occupancy Indicator - Deadbolt Thrown or Retracted by Inside Turn Unit, Occupancy Indicator on Outside
- ANSI Certified A156.36
- 1-3/8" to 1-7/8" Door Range
- UL Listed for 3 Hour Fire Door
- Commercial Grade 2
Strike
Deadbolt, 1-1/8 Inch x 2-3/4 Inch, Square Corner
Function
71-Occupancy Indicator x Thumbturn
Backset
2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
Series
B500 Series
Finish
Oil Rubbed Dark Bronze
Strike Height
2-3/4 In.
Strike Type
Square Corner
Color Code
613/US10B
Bolt Protection
1 In.
Package Qty
1
Lock Face Size
2-1/4 In. x 1 In.
Latch Backset Dim
Adjustable 2-3/8 In. and 2-3/4 In.
Strike Width
1-1/8 In.
Dust Box
None
Latch Type
Deadbolt
Color
Dark Oxidized Satin Bronze Oil Rubbed
Latch Number
12-288
Strike Number
10-094
Thickness
1-3/8 In. - 1-7/8 In.
ADA Compliant
No
Strike Size
1-1/8" x 2-3/4"
Rose/Escutcheon Trim
Round Rose
Standards
A156.36-2010; Meets UL 10B and UL 10C Requirements
Interior Lock Type
Thumbturn
Exterior Lock Type
Indicator
Front Size
1-1/8" x 2-1/4"
Deadbolt Material
Steel
Features
Adjustable Backset With Lock-In-Place Helix Design; Integrated Anti-Pry Shield Protects Latch; Thicker Metal Security Strike; Security Strike on Jamb Has Third Screw; 10% Larger Diameter Deadbolt; Tapered Front Housing; Integrated Trim Piece
Product Type
Auxiliary Lock
Grade
ANSI/BHMA Grade 2
Deadbolt Throw
1 Inch
Finish Description
Oil Rubbed Dark Bronze
Warranty
3 Year Limited
Finish Family
Dark Bronze
Function Family
Occupancy Indicator Deadbolt
Manufacturer Parent
Allegion
Sub-Series
CL_Deadbolt_Locks_schlage_commercial_19
Handing
Non-Handed
Cylinder Included
No
Alternate Part Number-1
145493
Latch Bolt Type
Deadbolt
Latch Bolt Faceplate Size
1" x 2-1/4"
Door Bore Size
1-1/2", 2-1/8"
Lock Category
Deadbolts
Door Thickness Min
1-3/8"
Latch Bolt Face Type
Drive-In, Radius Corner, Square Corner
Latch Bolt Throw
1"
Door Thickness Max
1-7/8"
Knob/Lever Style
Inside Thumbturn
