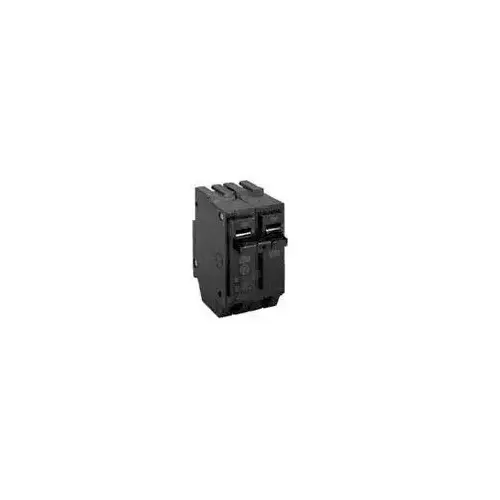

General Electric THQL2180 Feeder Circuit Breaker, Type THQL, 80 A, 2 -Pole, 120/240 V, Plug Mounting
Item #: THQL2180 by GE ELECTRICAL
UPC #: 783164099218
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
- Calibration screw is cemented to prevent shifting
- Case is made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
Trip Sensitivity
800 A
Wire Size
6 to 1/0 4 to 1/0 AWG
Trip Type
Non-Interchangeable
Mounting Type
Plug
Operating Temperature
60 to 75 deg C
Type
Type THQL
Operating Frequency
50/60 Hz
Current Rating
80 A
Actuator Type
Quick-Make Quick-Break
Terminal Type
Lug
Interrupt Rating
10 kA
Dimensions
3.28 in L x 2 in W x 2.38 in H
Number of Poles
2
Nomenclature
THQL2180 GE INTRCHG BRKR 2P80A
Number of Phases
1
Product Overview
CIRCUIT BRKR QLN 2P 2IN 80/80A
Specifications:
Specifications:
Suitable for: Reverse Feed
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger, Crouse-Hinds. 15 to 30 A 14-8 Cu or 12-8 Al AWG wire, 35 to 60 A 8-3 Cu or 8-2 Al AWG wire, 70 to 100 A 6-1/0 Cu or 4-1/0 Al AWG wire. UL Listed, HACR rated. 120/240 V, 10,000 Air. 1 in per pole (2 in total).
