General Duty 400 Amp 240-Volt 3-Pole Outdoor Fusible Safety Switch

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

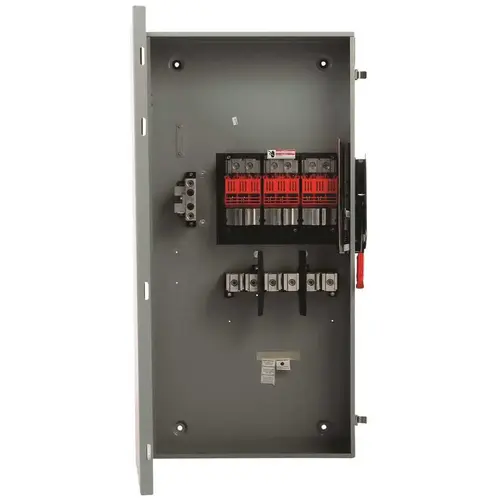

Siemens GF325NRA General Duty 400 Amp 240-Volt 3-Pole Outdoor Fusible Safety Switch

Item #: GF325NRA by Siemens AG

UPC #: 887621872410

Item Discontinued!
See reviewsSee reviews

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Voltage

240

Warranty

1 Year

Certifications

UL, CSA

Amperage

400 Amp

Phase

3

Manufacturer Warranty

1 Year

Certifications and Listings

UL Listed

Fusible / No Fusible

Fusible

Horsepower at 240V

125

Maximum Amperage

400, 400 amp

Maximum Wattage

96000

NEMA Rating

3R

Number of Phases

1

Product Depth (in.)

6.94

Product Height (in.)

45.32

Product Width (in.)

22.40

Safety Switch Type

Safety Switch

Features

Mountable, On/Off Switch, Overload Protection, Short Circuit Protection

Pack Size

1

UNSPSC

39122205

Product Overview

General Duty Safety Switches are intended for applications where reliable performance and continuity of service are needed, but where duty requirements are not severe and usual service conditions prevail. These switches are intended for use primarily with supply circuits rated 240-Volt AC or less where the available fault current is less than 100,000 Amp when used with Class R or T fuses or 10,000 Amp max when used with Class H fuses.

  • 3-Pole, 240-Volt, 400 Amp fusible safety switch
  • Quick-make, quick-break operating mechanism that ensures positive operation
  • Generous wiring gutters that meet or exceed NEC wire-bending space requirements
  • Visible blade, double-break switch action
  • Highly visible on/off indication
  • Single cover interlock
  • Side-hinged door that opens 180Ëš for easier wiring
  • Unique enclosure design that adds rigidity and strength, its rolled edge prevents cuts and scrapes to conductors and to installer's hands
  • NEMA type 3R: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation, or internal icing
