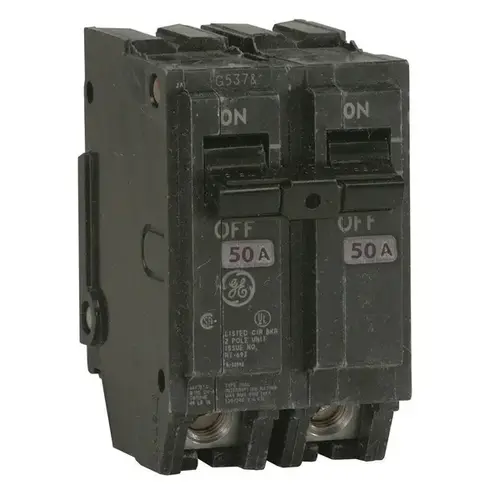

General Electric THQL2150 Feeder Circuit Breaker, Type THQL, 50 A, 2 -Pole, 120/240 V, Plug Mounting Black
Item #: THQL2150 by General Electric Company
UPC #: 783164012941
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
- Calibration screw is cemented to prevent shifting
- Case is made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
Voltage
240
Mounting Type
Plug
Warranty
One year warranty from first use
Certifications
Made in the USA, UL
Amperage
50 Amp
Phase
1
Manufacturer Warranty
Lifetime Warranty
Breaker Type
Double Pole
Certifications and Listings
UL Listed
Maximum Amperage
50
Number of Poles
2
Product Depth (in.)
3
Product Height (in.)
3
Product Width (in.)
3.375
Pack Size
1
Height
2.00
AMPS
50 amps
Volts
120/240 V
Depth
2.4"
Width
2.80
UL Listed
Yes
Packaging Type
Bulk
Indoor or Outdoor
Indoor
Breakers Included
Yes
Circuit Protection Type
Standard
CSA Listed
No
Defective Code
A
Each Weight
0.640 LB
Hazardous Material
No
Returnable
Yes
Sub Brand
Q-Line
Velocity
B
Product Type
Circuit Breaker
UNSPSC
39121601
Length
3.10
ECCN
EAR99
Country Origin Code
US
Terminal Type
Lug
Interrupt Rating
10 kA
Operating Frequency
50/60 Hz
Trip Type
Non-Interchangeable
Nomenclature
THQL2150 GE INTRCHG BRKR 2P50A
Trip Sensitivity
500 A
Actuator Type
Quick-Make Quick-Break
Dimensions
3.28 in L x 2 in W x 2.38 in H
Type
Type THQL
Operating Temperature
60 to 75 deg C
Wire Size
8 to 3 8 to 2 AWG
Number of Phases
1
Current Rating
50 A
Product Overview
CIRCUIT BRKR QLN 2P 2IN 50/50A
Specifications:
Specifications:
Suitable for: Reverse Feed
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger, Crouse-Hinds. 15 to 30 A 14-8 Cu or 12-8 Al AWG wire, 35 to 60 A 8-3 Cu or 8-2 Al AWG wire, 70 to 100 A 6-1/0 Cu or 4-1/0 Al AWG wire. UL Listed, HACR rated. 120/240 V, 10,000 Air. 1 in per pole (2 in total).
