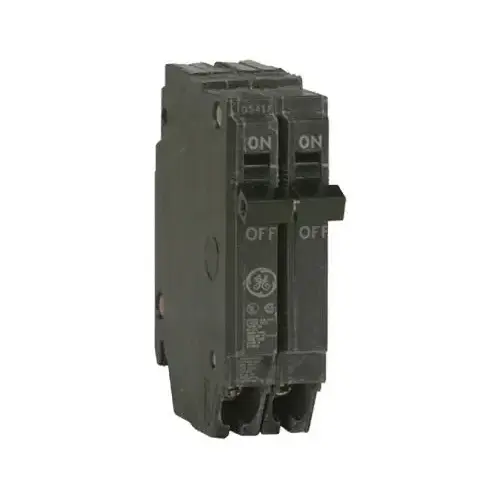

General Electric THQP230 Feeder Circuit Breaker, Type THQP, 30 A, 2 -Pole, 120/240 V, Plug Mounting Black
Item #: THQP230 by General Electric Company
UPC #: 783164085730
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
- Calibration screw is cemented to prevent shifting
- Case made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
Voltage
240
Mounting Type
Plug
Warranty
One year warranty from first use
Certifications
UL
Amperage
30 Amp
Phase
1
Manufacturer Warranty
Lifetime Warranty
Breaker Type
Double Pole
Certifications and Listings
UL Listed
Circuit Breaker Type
Thin
Maximum Amperage
30
Number of Poles
2
Product Depth (in.)
1
Product Height (in.)
3
Product Width (in.)
3.375
Pack Size
1
Height
0.90
AMPS
30 Amps
Volts
120/240 V
Depth
3.3"
Width
2.70
Type
Type THQP
UL Listed
Yes
Number of Phases
1
Packaging Type
Bulk
Indoor or Outdoor
Indoor
Breakers Included
Yes
Circuit Protection Type
Standard
CSA Listed
Yes
Defective Code
A
Each Weight
0.390 LB
Hazardous Material
No
Returnable
Yes
Sub Brand
Q-Line
Velocity
B
Product Type
Circuit Breaker
UNSPSC
39121601
Length
2.90
ECCN
EAR99
Country Origin Code
US
Dimensions
3.28 in L x 1 in W x 2.58 in H
Operating Temperature
60 to 75 deg C
Wire Size
8 to 4 AWG
Terminal Type
Lug
Interrupt Rating
10 kA
Operating Frequency
50/60 Hz
Trip Type
Non-Interchangeable
Nomenclature
THQP230 GE BREAKR1/2IN 30A 2P
Actuator Type
Toggle
Current Rating
30 A
Product Overview
BREAKER CIRCUIT 2POLE 1IN 30A
Specifications:
Specifications:
Suitable for: Reverse Feed
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space. 1/2 in per pole. UL listed, HACR rated. 15 to 25 A 14 to 8 Cu or 12 to 8 Al AWG wire, 30 to 50 A 8 to 4 Cu or 8 to 2 Al AWG wire. 3-9/32 in H x 1/2 in W x 2-3/8 in D. 120/240 V, 10,000 AIR.
