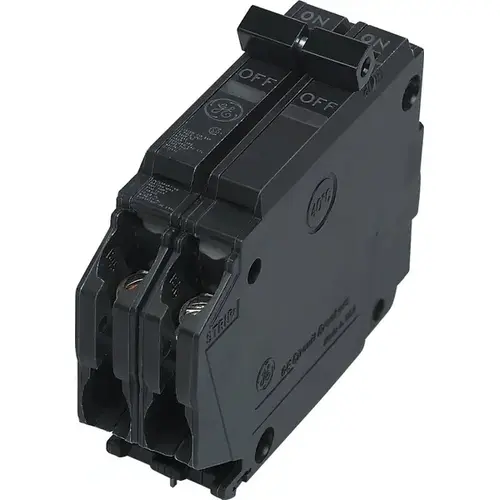

General Electric THQP220 Feeder Circuit Breaker, Type THQP, 20 A, 2 -Pole, 120/240 V, Plug Mounting Black
Item #: THQP220 by General Electric Company
UPC #: 783164085723
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
- Calibration screw is cemented to prevent shifting
- Case is made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
- Meets NEMA standards
Voltage
240
Mounting Type
Plug
Warranty
One year warranty from first use
Certifications
UL
Amperage
20 Amp
Phase
1
Manufacturer Warranty
Lifetime Warranty
Breaker Type
Double Pole
Certifications and Listings
UL Listed
Circuit Breaker Type
Thin
Maximum Amperage
20
Number of Poles
2
Product Depth (in.)
1
Product Height (in.)
3
Product Width (in.)
3.375
Pack Size
1
Returnable
Yes
UL Listed
Yes
Height
0.90
Defective Code
A
Breakers Included
Yes
Width
2.90
Circuit Protection Type
Standard
Sub Brand
Q-Line
Indoor or Outdoor
Indoor
Volts
120/240 V
Packaging Type
Bulk
Depth
2.4"
Product Type
Circuit Breaker
AMPS
20 Amps
CSA Listed
Yes
Each Weight
0.360 LB
Velocity
B
Hazardous Material
No
UNSPSC
39121601
Length
3.30
ECCN
EAR99
Country Origin Code
US
Dimensions
3.28 in L x 1 in W x 2.58 in H
Type
Type THQP
Operating Temperature
60 to 75 deg C
Wire Size
14 to 8 12 to 8 AWG
Number of Phases
1
Terminal Type
Lug
Interrupt Rating
10 kA
Operating Frequency
50/60 Hz
Trip Type
Non-Interchangeable
Nomenclature
THQP220 GE BREAKR1/2IN 20A 2P
Actuator Type
Toggle
Current Rating
20 A
Product Overview
BREAKER CIRCUIT 2POLE 1IN 20A
Specifications:
Specifications:
Suitable for: Reverse Feed
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space. 1/2 in per pole. UL listed, HACR rated. 15 to 25 A 14 to 8 Cu or 12 to 8 Al AWG wire, 30 to 50 A 8 to 4 Cu or 8 to 2 Al AWG wire. 3-9/32 in H x 1/2 in W x 2-3/8 in D. 120/240 V, 10,000 AIR.
