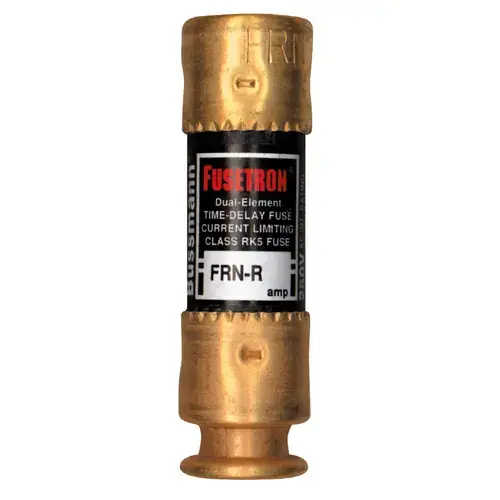

Bussmann FRN-R-60 FRN Series Brass 60 Amp 250-Volt Fusetron Time Delay Fuse Copper
Item #: FRN-R-60 by Cooper Bussmann, Inc
UPC #: 051712101813
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Bussmann Series fusetron cartridge fuses are 23% more energy efficient and offer the best time-delay performance
- Their dual element feature allows closer sizing to load for great protection of motors and transformers
- When sized correctly, they help protect motors from burnout caused by overloads or single-phasing
- The time-delay feature allows the initial startup current surge for typical motors to pass, but opens prior to motor burnout when longer, dangerous overloads are present
Voltage
250
Overall Length
3 in.
Overall Diameter
0.81 in.
Warranty
none
Certifications
UL
Amperage
60 Amp
Manufacturer Warranty
None
Certifications and Listings
CSA Certified, UL Listed
Maximum Amperage
60
Number in Package
1
Product Depth (in.)
3
Product Height (in.)
0.81
Product Width (in.)
0.81
Fuse Type
Low Voltage Time Delay
Pack Size
10
UNSPSC
39121600
Height
2.94
Length
3"
Width
0.75
Hazardous Material
No
ECCN
EAR99
Country Origin Code
MX
Element Type
Dual
Interrupt Rating
20 200 kA
Fuse Group
K
Nomenclature
FRNR60 60A CARTRIDGE FUSE
Indicator Type
Non-Indicating
Rejection/Non-Rejection
Rejection
Current Rating
60 A
Diameter
13/16"
Terminal Type
Holder
AMPS
60 amps
Volts
250 V
Application
Power
UL Listed
Yes
Packaging Type
Boxed
CSA Listed
No
Defective Code
A
Each Weight
1.180 LB
Endcap Construction
Ferrule
Returnable
Yes
Tamper Proof
No
Tube Construction
Fiberglass
Velocity
A
Product Type
Time Delay Fuse
Product Overview
FUSE CARTRIDGE DELAY 2ELMT 60A
Specifications:
Specifications:
Application: For combination starters, motor control centers, machinery disconnects, power panelboards
Provides motor overload, ground fault and short-circuit protection. Helps protect motors against burnout from overloads and single phasing on three phase systems. Will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of ten seconds. 250 V maximum. UL listed, CSA Certified.
