Preston Series Wall Mount Hinge - Full Back Plate - Brushed Bronze

Roll over image to zoom in

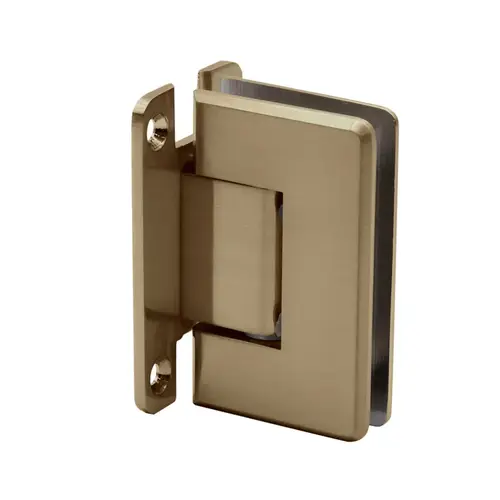

FHC PRESF1BBRZ Preston Series Wall Mount Hinge - Full Back Plate - Brushed Bronze

Item #: PRESF1BBRZ by Frameless Hardware Company LLC

See reviews See reviews
HURRY! Low in stock

$73.66

/each
SAVE UP TO 7.37

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Beveled Profile Glass to Wall Hinge with Full Back Plate
  • Designed For 3/8"-1/2" (10 mm to 12 mm) Tempered Glass
  • Many Popular Finishes to Select From
  • Self-Centering within 15 Degrees of Closing Position
  • Commonly used in Residential Bath and Commercial Hotel Applications
  • Reversible 5 Deg Pivot Pin For Jobs Requiring a Positive Closing Position

Mounting Type

Wall Mount

Construction

Solid Brass with Stainless Steel Plate

Glass Thickness

3/8" or 1/2" (10 or 12 mm)

Maximum Door Weight

2 Hinges/80 lb, 3 Hinges/120 lb

Maximum Door Width

28" (2 Hinges), 32" (3 Hinges)

Product Height

3-1/2"

Product Width

2-1/8"

Profile

Beveled

Plate Type

Full Back Plate

Color/Finish

Brushed Bronze

Series

Preston

Door Material

6654

Compare To

P1N037BBRZ
HPGTWFPVB

Gasket Specifications

For 3/8" (10 mm) Glass: Use One Thick Gasket On Each Side For 1/2" (12 mm) Glass: Use One Thin Gasket On Each Side

Hardware Type

Wall Mount Hinge


Note:
Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.

Gasket Specifications:
For 3/8" (10 mm) Glass: Use One Thick Gasket On Each Side For 1/2" (12 mm) Glass: Use One Thin Gasket On Each Side

Glass Instructions:
Only use tempered safety glass. To prevent damage to the hinge finish during installation, do not use power tools when installing these hinges.

Warnings:
Not for use with Laminated Glass

Glass Fabrication:
See Template PDF for Glass Cutouts

Overview:
The Preston Series Hinge has a dual degree pivot pin. It comes factory set at 90 degrees for normal door closing applications. There is also a secondary setting on the hinge pivot pin that can be field adjusted to allow an additional 5 degrees of closing for jobs that require a firmer positive position against a jamb or seal.

Care & Cleaning Guidelines:
For best results, keep the following recommendations in mind when caring for your FHC shower door hardware. Your shower door should be dried daily with a soft towel or cloth to ensure its original finish. Do not use harsh cleaners or chemicals on the hardware, as many of the components are coated with a clear lacquer that will become damaged beyond repair. Always test your cleaning solution in an inconspicuous area prior to cleaning the entire hardware surface. Wipe surfaces clean using a soft, dampened cloth or sponge, and rinse completely with warm water immediately after applying the cleaning solution. Use only small amounts of liquid, gentle, cleaner. Never use abrasive products, sponges, or wire scrub brushes while cleaning hardware.

Maintenance:
FHC's hinges come factory greased for a silent, hassle-free experience. If there is any noticeable squeaking that occurs after installation it is recommended to apply a few drops of (3 in 1) multi-purpose oil to the hinge, at the nylon washer/pivot location. The lubricant will penetrate the hinge crevices, reducing friction, cleaning grime, and/or buildup. Spray lubricants are prohibited. If, for some reason, the hinge is disassembled during maintenance, use a small amount of white lithium grease to lubricate the interior hinge components.

Material/Construction:
Solid Brass with HD S/S Back Plate
