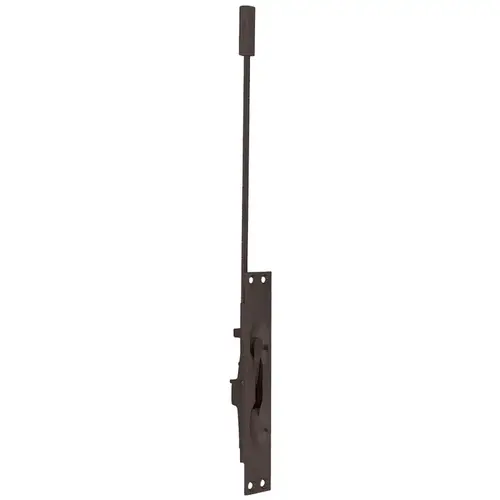

IVES FB458-12 US10B FB458 Manual Flush Bolt - Metal Doors, Oil Rubbed Dark Bronze
Item #: FB458-12 US10B by IVES
UPC #: 044074127447
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Color
Dark Oxidized Satin Bronze Oil Rubbed
Color Code
613/US10B
Package Qty
1
Base Material
Bronze
Finish
Oil Rubbed Dark Bronze
Finish Description
Oil Rubbed Dark Bronze
Product Type
Door Accessory
Body Size
1" x 6-3/4" x 1-1/8"
Rod Length
12 Inch
Application
Metal Door
Bolt Diameter
1/2 Inch
Function
Flush Bolt
Guide Size
1" x 2" x 5/64"
Bolt Throw
3/4" with a 7/8" Vertical Adjustment
ADA Compliant
No
Finish Family
Dark Bronze
Included Components
8-32 X 1" FPHMS
Strike Size
15/16" x 2-1/4" x 5/64"
Product Material
Brass
Standards
UL10C Listed (3 hour) Fire Doors 8ft X 10ft
Function Family
Door Accessory
Features
Simplified Installation in Metal Frames; When the Active Door is Opened, the Lever can be Moved to the ‘Up’ Position; Retracting the Bolt and Allowing the Inactive Leaf to be Opened
Series
Parts/Accessories
Bolt Backset
3/4 Inch
Manufacturer Parent
Allegion
Sub-Series
DTA_Flush_Bolts_and_Coordinators_ives_16
Product Overview
FB458Manual Flush BoltFeatures:
- When the active door is opened, the lever can be moved to the ‘up’ position, retracting the bolt and allowing the inactive leaf to be opened. When the inactive leaf is closed, the lever can be moved to the ‘down’ position, projecting the bolt into the strike and securely locking the inactive leaf.
- Simplified installation in metal frames. Round bolt head requires only a punched hole. Use of strike optional. Special design of guide and flat sided bolt tip to prevent bolt rotation.
- Non-handed
- Bolt tip 1/2" diameter
- Bolt throw is 3/4" with a 7/8" vertical adjustment
- Bolt backset is 3/4"
- Standard rod length is 12", which is measured from the center of the flush bolt body to the bolt tip
- Meets ANSI A156.16, L04261
- UL Listed 3 Hour fire doors 8'0" X 10'0". Fire rated openings require top and bottom bolt.
- 8 32 X 1" FPHMS
- Optional rod lengths available for top bolt only on non-fire rated openings — 18", 24" for fire rated doors with AHJ approval, 36" and 48" for non-fire rated doors
- DP1 and DP2 dust proof strike
- 1" x 6 3/4" x 1 1/8"(Width X Length X Depth)
- 1" x 2" x 5/64"(Width X Length X Thickness)
- 15/16" x 2 1/4" x 5/64"(Width X Length X Thickness)
- 609 - Satin Brass Blackened
- 605 - Bright Brass
- 625 - Bright Chrome
- 613 - Oil Rubbed Bronze
- 612 - Satin Bronze
- 626 - Satin Chrome
- 619 - Satin Nickel
- 622 - Matte Black
