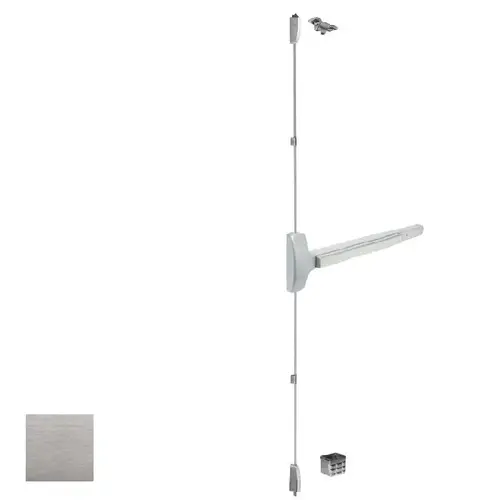

25 Series Fire Rated Exit Device

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Falcon F-25-V-EO-28-3FTX7FTClick To Copy 25 Series Fire Rated Exit Device

Item #: F-25-V-EO-28-3FTX7FT by Falcon

See reviewsSee reviews
See reviews summary

$2,851.80

/each
SAVE UP TO 285.18

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Application

High-Traffic

Length

3 Foot Device

Hand

Non-Handed

Handing

Non-Handed

Color Code

628/US28

Function

Exit Only

Door Thickness

1-3/4 inch

Door Width

36 Inch

Device Length

36 Inch (3 Foot)

Stile

Wide Stile

Door Height

7 Foot (84 Inches)

Fire Rated

Yes

Latch Throw

Top 3/4"; Bottom 1/2"

Finish Description

Satin Aluminum

ANSI Function

01

Device Type

Surface Vertical Rod

Dogging Options

Hex Key Dogging

ADA Compliant

No

Finish Family

Aluminum

Included Components

Fasteners and Sex Bolts

Standards

ANSI A156.3-2001 Grade 1; UL 10C Listed

Stile Width

3-1/2 Inch

Center Case Dimensions

9" x 2-1/4" x 2-5/8"

Device Bar Projection

2 3/4" Maximum

Device Trim Function

Exit Only

Function Description

Exit Only - No Trim

Chassis Material

Aluminum

Device Centerline From Finished Floor

40-1/4 Inch

Function Family

Exit Only-No Trim

Mechanism Case Dimensions

2" x 2-1/4"

Features

Surface-Applied Vertical Rod Device Includes a Sleek Touch Bar Design With Top Latch and Deadlocking Standard

Product Type

Exit Device

Series

25 Pushbar

Door Material

Metal or Wood

Manufacturer Parent

Allegion

Latchbolt Type

Standard With Top Latch Deadlocking

Sub-Series

EDT_Surface_Vertical_Rod_Devices_falcon_7

Product Overview
F-25-V SeriesVertical rod device

Fire exit hardware When your application requires strength and durability, plus fire rated performance, the F-25-V Series is the total package. This surface-applied vertical rod device includes a sleek touch bar design with top latch and deadlocking standard.

Specifications: Hand:
  • Field reversible.
UL:
  • "A" Label (3 hr) - 8' x 10' double egress; 90 min. same egress - 8' x 10' Wood door: 20 min. 8' x 10'; 90 min. 8' x 9'. Consult door manufacturer for maximum rating.
Finishes:
  • U S3 (605); US4 (606); US10 (612); US10B (613); US11 (643e); US15 (619); US19 (622); US26 (625); US26D (626); US32 (629); US32D (630), US28 (628), 313AN (710)
Strikes:
  • ​3788 top strike is surface applied.
  • 2130 bottom strike is mortised into floor.
Latchbolt:
  • Top stainless steel 3/4" throw. Bottom bolt, 1/2" throw.
Deadlocking latchbolt:
  • Standard in top latch
Latch retention hold:
  • Standard with top latch
Doors:
  • 3/4" thick, wood or metal. Specify thickness if other than 1 3/4".
Projections:
  • 2 3/4" maximum.
Electric functions:
  • Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
Fasteners:
  • All mounting screws are concealed. All machine screws (AMS) standard.
Sex bolts:
  • Required when used with wood, composite or non-reinforced hollow metal doors. For EO device, specify 12 - 425 (#10-24) SNB. For devices with trim, specify 8 - 425 (#10-24) SNB.
ANSI:
  • Certified ANSI A156.3-2001 grade 1 standards.
F-25-V:
  • F-25-V
F-25-V-LBR:
  • Less bottom rod vertical device. Auxiliary fire pin required per pair. "A" Label (3 Hr) - 8' x 8'; 90 min. same egress - 8' x 8'.
Vertical rods:
  • Furnished to length based on a 40 1/4" horizontal CL from finished floor and a 7'0" door standard. Variations from these standards must be specified when ordering.
Shim kits:
  • For glass lite applications; 1/4" thick, specify SK25-V.
