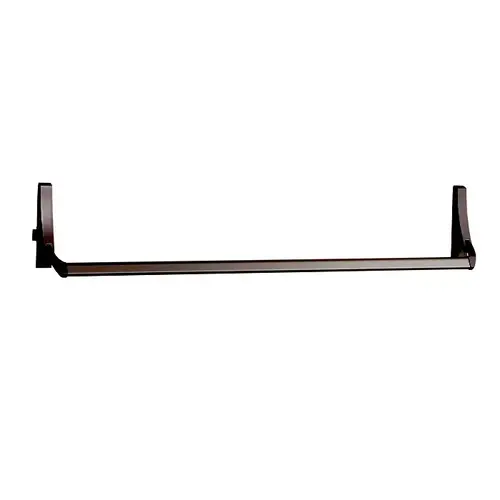

Falcon 2090EO-P13-RHRClick To Copy 2090 Series Exit Device, Dark Bronze Painted

Item #: 2090EO-P13-RHR by Falcon

See reviewsSee reviews
See reviews summary

$962.59

/each
SAVE UP TO 96.26

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

Dark Bronze Painted

Length

4

Handing

Right Hand Reverse

Function

Exit Only

Device Length

48 Inch (4 Foot)

Stile

Narrow Stile

Fire Rated

No

Finish Description

Dark Bronze Painted

Product Type

Exit Device

Series

2090 Crossbar

Sub-Series

2090EO-P13-RHR

Manufacturer Parent

Allegion

Door Material

Metal; Wood

Application

Retrofit Applications With Interior and Exterior Doors in Commercial and Retail Installations

Bolt Throw

3/4 Inch

Hand

Right Hand Reverse

Features

SD36 Standard Strike; Removable Mullions; Non Fire Rated

Device Trim ANSI Function

01

Function Family

Exit Only-No Trim

For Door Thickness

1-3/4 Inch

Function Description

Exit Only - No Trim

Device Trim Function

No Outside Trim

Device Bar Projection

Extended: 4-3/8 Inch; Depressed: 2-1/2 Inch

Trim Style

EO

Stile Width

1-3/4 Inch

Standards

UL 305 Listed

Finish Family

Dark Bronze

ADA Compliant

No

Latch Type

Hardened Steel

Dogging Options

Hex Key Dogging

Device Type

Rim Device

ANSI Function

01

Product Overview
2090 SeriesRim crossbar device

Classic looks in a rim exit device. The 2090 provides balanced appearance, dependable performance and economical pricing, making it a popular choice where rim exit devices are required.

Specifications: Hand:
  • Specify RHR or LHR, not reversible
Finishes:
  • P28, P13, P35, US26D
Strikes:
  • SD36 standard
Latchbolt:
  • 1/2" throw hardened steel
Dogging feature:
  • Hex dogging standard
Cylinder:
  • Rim, key entry (NL) or hold back (HB) available
  • (field selectable)
Sizes:
  • Field adjustable width, 41" crossbar standard extra length crossbars available
Doors:
  • 1 3/4" thick metal or wood doors, specify if wood door; 9970 is for use on HM and Alum doors only; Not for use on wood doors
Projections:
  • 4 3/8" extended, 2 1/2" depressed
Stile:
  • 1 3/4" minimum
Fasteners:
  • All mounting screws are concealed
UL:
  • UL305 listed
Mullions:
  • Removable mullions are available for pairs of doors
