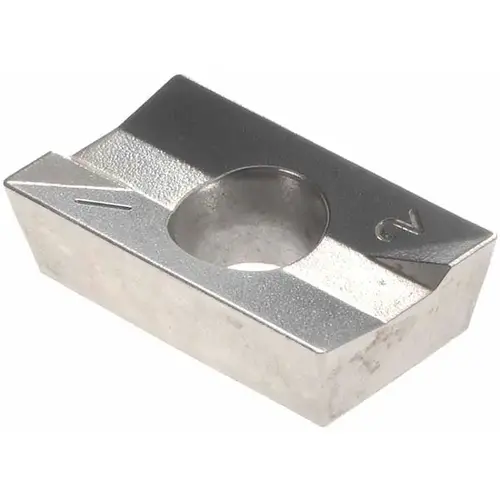

Milling Insert: CS6, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Everede Tool 4004-XCP10Click To Copy Milling Insert: CS6, Solid Carbide - pack of 10

Item #: 4004-XCP10 by Everede Tool

See reviewsSee reviews
See reviews summary
In Stock

$166.85

/package
SAVE UP TO 16.68

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 17 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Single Sided

Material Application

Steel

ANSI Code

APLT347

Number of Cutting Edges

2

Standards

ANSI

Insert Material

Solid Carbide

Series

APLT

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0150

Length (Decimal Inch - 4 Decimals)

0.5910

Manufacturers Catalog Number

APLT347

Material Grade

Medium Grain

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1875

Thickness (Inch)

3/16

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750

Width (Inch)

3/8

Coating Classification

Uncoated

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.5760

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/64

Insert Shape

Parallelogram

Chip Breaker

Common

Insert Style

APKT

Insert Size Code

160404

Hole Diameter (Decimal Inch)

0.1730

Relief Angle

11.00

Included Angle Degree

85

Inscribed Circle (Inch)

3/8

Cutting Edge Effective Length (Decimal Inch)

0.3750

Manufacturer Grade

CS6

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Single or Double Sided Insert

Single

Cutter Series Compatibility

CHM

Length Range (Decimal Inch)

0.5000 to 0.6000

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Iso Code

APKT 160404

Product Overview
Milling Insert: CS6, Solid Carbide Uncoated, 3/16" Thick, 3/8" Wide
