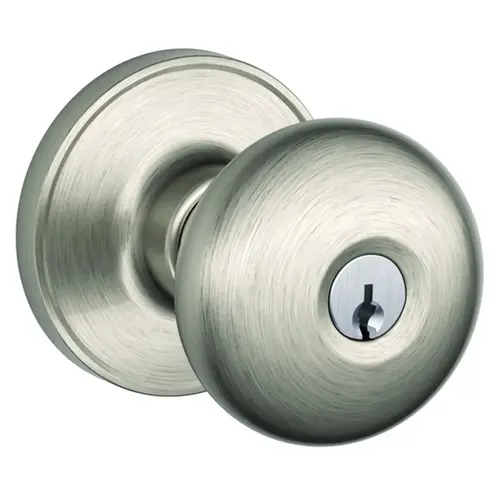

J Series J54 STR 619 Keyed Entry Knob, Brass, Satin Nickel

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Schlage Residential J54 STR 619Click To Copy J Series J54 STR 619 Keyed Entry Knob, Brass, Satin Nickel

Item #: J54 STR 619 by Schlage Residential

UPC #: 043156863242

See reviewsSee reviews
See reviews summary
In Stock

$27.11

/each
SAVE UP TO 2.71

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 8165 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Entry (Keyed) Function - Locked by Key and Rotating Cylinder from Outside; Unlocked by Key on Outside or from Turn Button on inside
  • Easy installation
  • Fits all standard door preparations
  • Applications: Residential single and multi family doors
  • Backset: Universal - fits either 2-3/8" or 2-3/4" backset
  • Keyed entry function
  • Turn button locking, can be unlocked by key outside or by turn button inside
  • ANSI/BHMA A156.36 Grade 3
  • Reversible Handing
  • Can be rekeyed to match existing locks or other locks purchased
  • Certifications: Commercial Standard Certification:ANSI/BHMA A156.2-2010 Grade 3 Residential Standard Certification:ANSI/BHMA A156.39-2015 Grade CCC in Security, Durability and Finish
  • Door thickness range: 1-3/8" to 1-3/4" standard
  • Includes All Mounting Hardware for Easy Installation
  • Lifetime Mechanical & 5 Year Finish Warranty
  • UL Listed: Box pack available

Finish

Satin Nickel

Function

54-Keyed Entry

Series

J Series

Design

Round

Handing

Reversible

Strike

Full Lip 2-1/4 Inch, Radius Corner

Backset

2-3/8 Inch or 2-3/4 Inch

Color

Satin Nickel Plated Clear Coated

Color Code

619/US15

Grade

ANSI/BHMA Grade 3

Keyway

Schlage C

Cylinder Type

5-Pin Standard Cylinder

Finish Description

Satin Nickel

Knob style

STR-Stratus

Keyblank Grouping

SCHR-C-5-1

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

Warranty

Lifetime Mechanical and 5 Years Finish

Pack Size

1

Projection

2.5000

Door Thickness

1-3/8 to 1-3/4"

Knob Diameter

2.1875

Bore Size

2.1250

Product Height

2-3/4 Inch

Included Components

Keyed Entry Knobs; Roses; Latch; Strike; Mounting Hardware

Door Cross Bore

2.125 Inch

Keying Charges

Residential-Conventional

Product Material

Zinc

Box Length

6.7700

Box Width

3.2300

Box Height

2.7600

UNSPSC

46171500

Strike Type

Round Corner Full Lip

Strike Size

1-5/8 x 2-3/4"

Backset Size

2-3/8 2-3/4"

Key Type

SC1

Keyway type

C

Security Grade

Grade 3

Cross Bore Diameter

2-1/8"

Nomenclature

J54STR619 KNOB ENTR SATNIC STR

Bolt Throw Size

1/2"

Material

Metal

Application

Residential Single and Multi Family Doors

For Door Thickness

1-3/8" to 1-3/4"

Manufacturer Parent

Allegion

Door Edge Bore

1 Inch

Knob Style Family

Round Flat Knob

Latch Type

Deadlatch

Sub-Series

RL_Knob_Locksets_Schlage_Residential_176

ADA Compliant

No

Box Dimensions (L x W x H)

2.76x3.23x6.77

Function Family

Entry/Entrance/Office

Standards

ANSI/BHMA A156.2-2011

Product Projection

2-1/2 Inch

Features

Unlocked by Key From Outside When Outer Knob is Locked by Turn-Button in Inside Knob; Inside Knob is Locked and Unlocked by Turn-Button

Finish Family

Satin Nickel

Dimensions

2.38 in L x 2.63 in W x 2.63 in H

Handle Type

Knob

Faceplate Size

1 x 2-1/4"

Commercial/Residential

Residential

Number of Cylinders

1

Latch Housing Diameter

7/8"

Throw Length

1/2"

Backset Type

Adjustable

Edge Bore Diameter

1"

Re-Key Technology

Traditional

Projection Size

1/2"

Interior Locking

Yes

Product Overview
J SeriesKnobs

Schlage believes that the "finishing touch" is just as important as the first. Which is why we make distinctive door hardware designed to match your personal style. From classic looks that never go out of style to bold contemporary designs, our door knobs fit and accentuate virtually any décor. Choose from interior door knob functions perfect for bedroom, bathroom, and closet doors or exterior keypad and locking knobs.

Available Functions: J10/F75 - Hall & Closet*:
  • Both knobs always unlocked
J40/F77 - Bed & Bath*:
  • Turn-button locking. Can be opened from outside by turning outside turn mechanism
  • From interior, turning inside turn-button releases inside knob
J170 - Non-turning*:
  • Inactive trim for one side of door
  • Used for door pull or as matching inactive trim
J54/F82 - Keyed Entry**:
  • Unlocked by key from outside when outer knob is locked by turn-button in inside knob
  • Inside knob is locked and unlocked by turn-button
  • *Non-keyed Locks
  • **Keyed Locks
Latches & Strikes: Keyed Latches - Dead Latches:
  • 16-255 - Triple Option (Round, Square, Drive-in) - Standard
  • 16-061 - UL Listed, Square Corne
Non Keyed - Spring Latches:
  • 16-254 - Dual Option (Round, Drive-in) - Standard
  • 16-070 - Triple Option Spring Latch for handlesets
Strikes:
  • 10-101 - Round Corner Full Lip - Standard
Specifications: Certification:
  • ANSI/BHMA A156 .2-2011 Commercial Grade 3
Latch:
  • Dual Option: 1" x 2 1/4", 1/4" round faceplate and drive-in
  • Triple Option: 1" x 2 1/4", square corner and round corner faceplate, drive-in latch (J54)
Strike:
  • 1 5/8" x 2 1/4", radius corner, full lip, no box
Backset:
  • Adjustable for 2 3/8" or 2 3/4"
Cylinder:
  • 5-pin, C keyway, keyed alike (KA4)
Door Range:
  • 1 3/8" - 1 3/4"
Keys:
  • Two brass cut keys per lock, 5-pin, C section
Finishes: 605:
  • Bright Brass (US3)
609:
  • Antique Brass (US5)
619:
  • Satin Nickel (US15)
620:
  • Antique Pewter (US15A)
622:
  • Matte Black (US19)
625:
  • Bright Chrome (US26)
626:
  • Satin Chrome (US26D)
630:
  • Satin Stainless Steel (US32D)
716:
  • Aged Bronze
  • *Non-standard finishes are not available
  • Full-color swatch examples available on inside Levers tab
