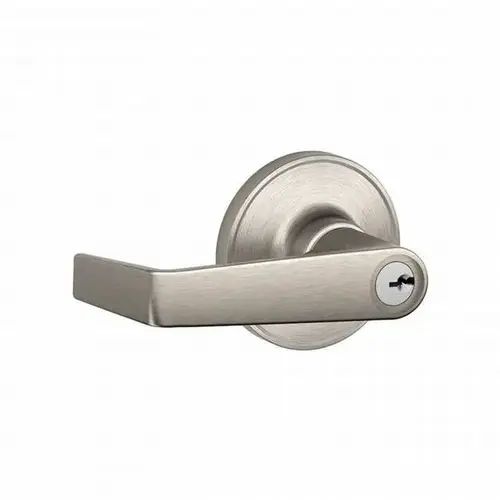

Schlage Residential J54 MAR 619 Entry Lock Marin Lever with C Keyway; 16255 Latch and 10101 Strike Satin Nickel Finish

Item #: J54 MAR 619 by Schlage Residential

UPC #: 043156778300

See reviewsSee reviews
See reviews summary
In Stock

$65.34

/each
SAVE UP TO 6.53
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 390 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Entry (Keyed) Function - Locked by Key and Rotating Cylinder from Outside; Unlocked by Key on Outside or from Turn Button on inside
  • ADA Compliant: Yes
  • Applications: Residential single- and multi-family doors
  • ANSI/BHMA A156.36 Grade 3
  • Reversible Handing
  • Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
  • Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
  • Includes All Mounting Hardware for Easy Installation
  • Lifetime Mechanical & 5 Year Finish Warranty
  • Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
  • UL Listed: Locks for up to three-hour fire doors available

Finish

Satin Nickel

Function

54-Keyed Entry

Series

J Series

Design

Marin

Handing

Reversible

Strike

Full Lip 2-1/4", Radius Corner

Backset

Triple Option-Round, Square, Drive-In

Color

Satin Nickel Plated Clear Coated

Color Code

619/US15

Grade

ANSI/BHMA Grade 3

Keyway

Schlage C

Cylinder Type

Conventional Cylinder

Finish Description

Satin Nickel

Lever Style

MAR-Marin

Keyblank Grouping

SCHR-C-5-1

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

Projection

2.4400

Door Thickness

1-3/8" to 1-3/4"

Bore Size

2.1250

Product Height

2-5/8"

Product Length

3.8750

Included Components

Keyed entry levers, roses, latch, strike, mounting hardware

Door Cross Bore

1.0000

Keying Charges

Residential-Conventional

Product Material

Zinc

Box Length

6.7700

Box Width

3.2300

Box Height

2.7600

Dimension

3-7/8" Lever Length and 2-7/16" Projection with 2-5/8" Diameter Rose

Material

Zinc

Manufacturer Warranty

Limited Lifetime Mechanical and 5 Year Finish Warranty

Rose/Escutcheon Design

Round Rose

Door Range

1-3/8" to 1-3/4"

Hazardous Material

No

Strike Dimension

2-1/4" x 1-5/8" x 1-1/8" Lip

Cross Bore Size

2-1/8" Bore

Finish code

619

Latch Faceplate Dimension

Square and Round Corner 1" x 2-1/4" Faceplate or 1" Collar

Lever Knob Design

Marin Lever

No of inners

1

No Of Pins

5 Pin Cylinder

Product Overview
Keyed Entry Function, Marin Lever, 619 Satin Nickel Finish
J SeriesLevers

From classic looks that never go out of style to bold contemporary designs, Schlage's levers and door handles fit and accentuate virtually any décor. Available in a variety of functions, you can choose the perfect look for every room in your house - it's the easiest way to give your entire home a style upgrade.

Available Functions: J10/F75 - Hall & Closet*:
  • Both levers always unlocked
J40/F77 - Bed & Bath*:
  • Turn-button locking. Can be opened from outside by turning outside turn mechanism
  • From interior, turning inside turn-button releases inside lever
J40P - Bed & Bath (Pushbutton)*:
  • Push-button locking. Can be opened from outside with small circular tool
  • Turning inside knob/lever releases button
  • ADA Compliant
J170 - Non-turning*:
  • Non-turning trim for one side of door
  • Used for door pull or as matching inactive trim
J54/F82 - Keyed Entry**:
  • Unlocked by key from outside whenouter knob is locked by turn-button in inside knob
  • Inside knob is locked and unlocked by turn-button
  • *Non-keyed Locks
  • **Keyed Locks
Latches & Strikes: Keyed Latches - Dead Latches:
  • 16-255 - Triple Option (Round, Square, Drive-in) - Standard
  • 16-061 - UL Listed, Square Corner
Non Keyed - Spring Latches:
  • 16-254 - Dual Option (Round, Drive-in) - Standard
  • 16-070 - Triple Option Spring Latch for handlesets
Strikes:
  • 10-101 - Round Corner Full Lip - Standard
Specifications: Certification:
  • ANSI/BHMA A156 .2-2011 Commercial Grade 3
Latch:
  • Dual Option: 1" x 2 1/4", 1/4" round faceplate and drive-in
  • Triple Option: 1" x 2 1/4", square corner and round corner faceplate, drive-in latch (J54)
Strike:
  • 1 5/8" x 2 1/4", radius corner, full lip, no box
Backset:
  • Adjustable for 2 3/8" or 2 3/4"
Cylinder:
  • 5-pin, C keyway, keyed alike (KA4)
Door Range:
  • 1 3/8" - 1 3/4"
Keys:
  • Two brass cut keys per lock, 5-pin, C section
Finishes: 605:
  • Bright Brass (US3)
609:
  • Antique Brass (US5)
619:
  • Satin Nickel (US15)
620:
  • Antique Pewter (US15A)
622:
  • Matte Black (US19)
625:
  • Bright Chrome (US26)
626:
  • Satin Chrome (US26D)
630:
  • Satin Stainless Steel (US32D)
716:
  • Aged Bronze
  • *Non-standard finishes are not available
  • Full-color swatch examples available on inside Levers tab

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 4.
