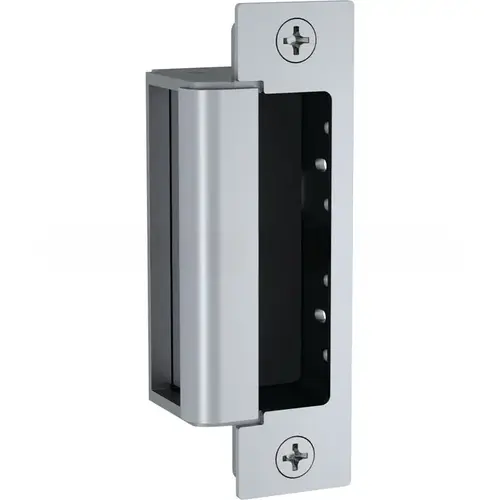

HES 1600-CDB 630 1600 Series Electric Strike Satin Stainless Steel
Item #: 1600-CDB 630 by HES
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Ul 10C Fire-Rated, 3 Hour Single Door (Fail Secure Only)
- 1,000,000 Cycle Endurance
- Non Handed
- ANSI/BHMA A156.31, Grade 1
- Internally Mounted Solenoid
Finish
Satin Stainless Steel
Series
1600 Series
Strike
Electric Strike
Use With
Cylindrical and Mortise Latchbolts and Deadbolts
Grade
Grade 1
Color Code
630
Function
Electric Strike
Fire Rated
3 Hours {A}, Yes
Amp Draw
.24 Amps at 12VDC, .12 Amps at 24VDC
Burglar Rated
Yes
Faceplate Shape
Flat Face, Square Corners
Faceplate Size
4-7/8 In. X 1-1/4 In.
Frame Application
Metal or Wood
Frame Depth
1-5/8 In.
Operating Voltage
12VDC/24VDC
Package Qty
1
Special Marks
Fire rated 3 Hours {A}
Base Material
Stainless Steel
Switch Type
None
Finish Description
Satin Stainless Steel
Product Type
Electric Strike
Product Height
1-5/8 Inch
Product Length
4-7/8 Inch
ADA Compliant
No
Finish Family
Stainless Steel
Included Components
1DB Faceplate Kit
Product Material
Stainless steel
Standards
ANSI/BHMA A156.31, Grade 1; UL 1034 Listed; UL 294 Listed; RoHS Compliant; UL 10C Listed; CAN/ULC-S104 Fire Door Conformant; NFPA-252 Fire Door Compliant; ASTM-E152 Fire Door Compliant; California Fire Marshal Listed; ANSI/SDI A250.13; ANSI-ASTM E330
Faceplate Dimension
4-7/8" x 1-1/4"
Function Family
Electric Strike
Features
Tamper Resistant; Endurance 1 Million Cycles; Non-Handed; Field Adjustable Integrated Shim; Windstorm Resistant; Outdoor Rated; Burglary Rated; POE Friendly
Voltage
12/24VAC/DC
Mounting Type
Surface Mount
For Use With
All Brands of Cylindrical and Mortise Locksets With or Without a Deadbolt
Application
Metal and Wood Frame
Warranty
SecuriCare 5 Year
Strength
1500 (Static); 70 (Dynamic) lb; ft-lb
Current Draw
240mA; 120mA
Manufacturer Parent
Assa Abloy
Sub-Series
EAC_Electric_Strike_hes_3
Dimension
4-7/8" x 1-3/4" x 1-3/8"
Product Overview
1600 SeriesElectric Strike
Works with all brands of cylindrical and mortise locksets, with or without a deadbolt
The HES 1600 Series electric strike accommodates up to a 1" deadbolt with enhanced vertical cavity spacing.
The HES 1600 Series Electric Strike sets a new standard in the industry by offering dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock. The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories. For the first time, the aesthetics of an electric strike are complementary to other surrounding door hardware and blend in with the opening due to the fully finished design, available in seven finishes.
Features:- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1 million cycles
- Field selectable fail safe/fail secure
- Non-handed
- Interchangeable faceplates and accessories
- Field replaceable components
- Fully finished faceplate, keeper, case and trim
- Field adjustable integrated shim
- Strike body depth 1-5/8" [41.3mm]
- SecuriCare ten-year, no-fault, no questions asked warranty
- ANSI/BHMA A156.31, Grade 1
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 listed
- RoHS compliant
- UL 10C fire rated, 3-hour single door
- (fail secure only)
- UL 10C fire rated, 1-1/2 hour double door
- (fail secure only)
- CAN/ULC-S104 fire door conformant
- NFPA-252 fire door compliant
- ASTM-E152 fire door compliant
- California Fire Marshal listed
- ANSI/SDI A250.13 windstorm resistant
- Florida Building Code approved TAS 201, 202, 203
- ANSI-ASTM E330
- Metal
- Wood
- Dual voltage 12/24 VDC/VAC
- 240 mA at 12 VDC/120 mA at 24 VDC
- PoE friendly
- 630 - Satin stainless steel
- 605 - Bright brass
- 606 - Satin brass
- 612 - Satin bronze
- 613E - Dark oxidized satin bronze
- 629 - Bright stainless steel
- BSP - Black suede
