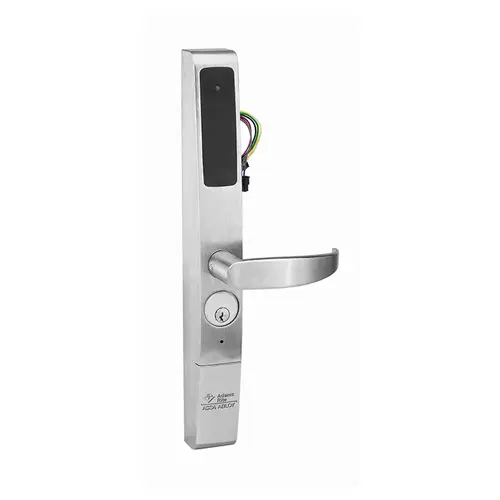

eForce Keyless Proximity Entry Lock Satin Chrome Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Adams Rite 3090P-01-626Click To Copy eForce Keyless Proximity Entry Lock Satin Chrome Finish

Item #: 3090P-01-626 by Adams Rite

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Battery Operated Keyless Entry Control Device
  • Housing: The sleek-looking 3090 eForce measures 1-3/4” wide x 15-3/8” high, with Satin Chrome (626) and Powdercoat Dark Bronze (121) finishes.
  • Handle: Clutch-protected cast zinc alloy, finished to match housing, field selectable handing.
  • Compatible Locking Devices: The 3090 eForce retrofits to Adams Rite MS® Deadlocks, 4500 and 4900 Deadlatches and 8000 Series Exit Devices in 31/32” backsets and greater. Additionally, the 3090 eForce-150 is compatible with Yale 7200 Series and Corbin Russwin ED4000 Series exit devices (check model number for availability).
  • Options: RSK-3090, Remote activation input cable.
  • Standard Package: Individually boxed with installation instructions, manual, and mounting hardware for metal door applications from 1-3/4” to 2-1/4” thick. Shipping weight approximately 5.5 lbs.
  • Provides Access Control for Adams Rite Deadlocks, Ceadlatches, and Exit Devices
  • Can Operated in Three Modes
  • All Programming Accomplished Through Keypad
  • Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service

Finish

Satin Chrome

Function

Entry

Series

3000 Series

Color Code

626/US26D

Package Qty

1

Product Overview

eForce Keyless Entry Lever, Prox Reader, Satin Chrome

The eForce 3090P (Prox) and 3090C (iCLASS) Keyless Entries provide maximum security with either HID Prox or iCLASS contactless card reader. The eForce 3090P, 3090C is a hardwired keyless entry control for Adams Rite deadlocks, deadlatches and exit devices, that is compatible with aluminum stile, steel and wood door applications. An authorized card presentation is confirmed with an audible beep and visual change in the red/green LED indicator Ð displaying the locked/unlocked status. A high-speed motor engages an internal clutch to enable the exterior lever handle operation. Upon timeout, the lever operation is disabled until the next authorized card presentation or key override. The MS Deadlocks must always be relocked manually when used with the eForce 3090P or 3090C eForce Keyless Entry Trim. Hardwired installation: 18-22 AWG recommended (seven conductor stranded and shielded). 500 ft maximum distance to host.

eForce®- 3090-150 Keyless Entry provides access control for Adams Rite deadlocks, deadlatches, and exit devices.
