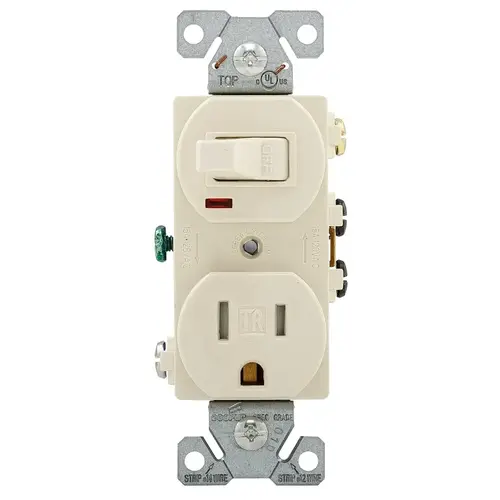

Eaton TR274LA Combination Switch/Receptacle, 2 -Pole, 15 A, 120 V Switch, 125 V Receptacle Light Almond
Item #: TR274LA by Cooper Wiring Devices
UPC #: 032664750243
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Steel mounting strap is zinc-plated for added corrosion resistance
- Convenient patented built-in wire stripper speeds installation
- Back wire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Break-off provision for wiring both devices on the same circuit or on separate circuits
- Triple-wipe blade contacts and double-wipe ground contacts to insure long-term plug retention
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
Mounting Type
Flush
Material
PVC
Dimensions
1.08 in D x 4.19 in H
Type
Heavy-Duty
Color
Light Almond
Operating Temperature
-20 to 60 deg C
Wire Size
12 to 14 AWG
Dielectric Strength
2000 V
Number of Poles
2
Number of Wires
3
Terminal Type
Screw
Nomenclature
TR274LA RECEPT/SWITCH COMBO LA
Wiring Type
Back and Side
Current Rating
15 A
Product Overview
RECEPTACLE/SWITCH COMBO LA
Specifications:
Specifications:
Application: For commercial applications
Traditional heavy-duty-grade combination switch with receptacle features UL listed tamper-resistant shutters designed to prevent the insertion of foreign objects. TR274 features a neon pilot light which is on when switch is on. Switch is horsepower-rated for motor loads per UL 20. Thermoplastic toggle, top and backbody are virtually unbreakable to deliver years of durable performance. Ultrasonic welding and integrated construction of the strap and body provide excellent ground integrity even under heavy use. Durable, injection-molded housings and PVC resin comply with UL94 V0 flammability ratings. Tri-combo screw heads offer greater installation flexibility.
