30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Current Rating
15 A
Wiring Type
Push Side
Nomenclature

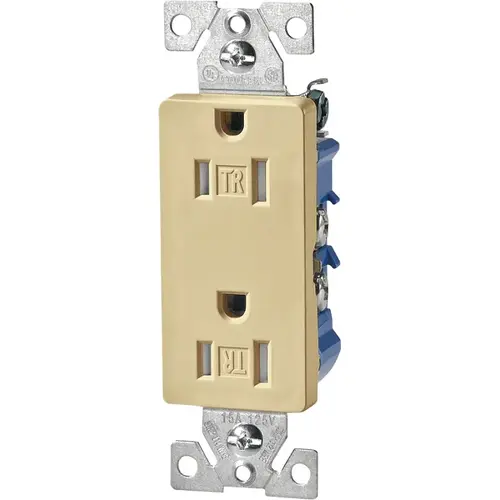

TR1107V DECO DUPLEX RECPT IVRY
Number of Wires
3
Number of Poles
2
NEMA Configuration
5-15R
Wire Size
14 to 10 AWG
Operating Temperature
-4 to 140 deg F
Color
Ivory
Dimensions
13 in L x 069 in W x 381 in H
Material
Thermoplastic
Mounting Type
Flush
Dimensions: 13 in L x 069 in W x 381 in H
Material: Thermoplastic
Receptacle is tamper resistant with a UL Listed shutter system and impact-resistant thermoplastic face and back body that is virtually unbreakable. The 2008 National Electrical Code (NEC) states that "Effective January 1, 2008, all receptacles installed in new dwelling units must be tamper-resistant." Features a wire stripper for number 14 and number 12 wire, extra long and wide mounting straps and tri-combo screws that accept slotted, Phillips and Robertson-head tools. Terminal screws are backed out and ready to wire. Side-wire terminals accept up to number 10 solid or stranded wire. Push in terminals accept number 14 solid wire. Screw-catch feature speeds wall plate installation. 15 amp, 125 volt. NEMA 5-15R. UL, cULus Listed.
