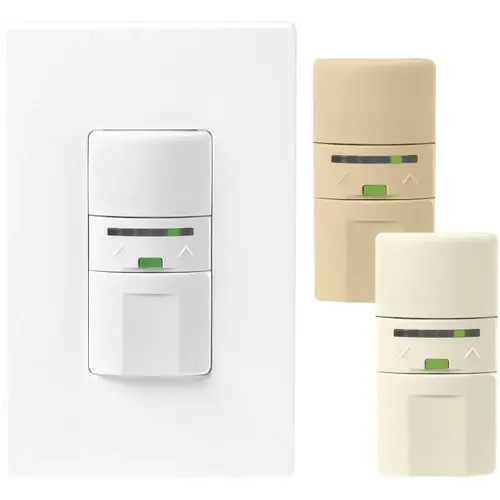

Eaton OS106D1-C2-K Dimmer Sensor with LED, 120 V, 1 -Pole, Motion Sensor, 180 deg Sensing
Item #: OS106D1-C2-K by Cooper Wiring Devices
UPC #: 032664710384
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Full-range preset dimming control provided with horizontal dim/bright bar
- Digital circuitry provides aesthetically pleasing soft-On/fade-Off that extends bulb life
- Single green LED indicates load status, provides locator light in dark and blinks to indicate motion detection
- Selectable ambient light override when there is acceptable natural light
- Bypass feature to allows the sensor to perform as a traditional switch
- Soft ON/fade OFF
- Preset and light level change is easily shown with horizontal row of green LEDs
- Push pad design provides minimal travel and crisp actuation
- Provides 180 deg field of view and 1000 sq-ft of major motion coverage
- Selectable time delay of 5 secs (test), 5 mins, 15 mins and 30 mins for lights to remain on after room is vacated
Material
Polycarbonate
Type
Motion Activated
Number of Poles
1
Frequency Rating
60 Hz
Sensing Angle
180 deg
Temperature Rating
0 to 40 deg C
Nomenclature
OS106D1-C2-K SENSOR OCCUPANCY
Sensing Range
1000 sq-ft
Wattage Rating
600 W
Timer Range
30 s to 30 min
Connection Type
Wire
Product Overview
SENSOR OCCUPANCY
Specifications:
Specifications:
Includes: Mid-Size Decorator Wallplate
Material: Polycarbonate
Occupancy/vacancy sensors use advanced Passive Infrared (PIR) technology to sense the movement of heat-emitting bodies. Occupancy sensors provide Auto-On/Auto-Off or Manual-On/Auto-Off operation while vacancy sensors provide Manual-On/Auto-Off operation only. The sensors automatically turn lights off after a space becomes vacant and a preset time delay elapses. Built-in dimmer provides preset full-range dimming of light load. A horizontal dim/bright bar with row of green LEDs provide intuitive control. Both versions provide 1-pole (single-location) wiring and work with incandescent and magnetic low-voltage lighting load types. All sensors are compatible with any decorator-style or decorator screwless wallplate.
