30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Dimensions
6 in L x 3-1/2 in W x 1 in H
Type
AFCI Combination Type BR
Wire Size
14 to 4 AWG
Number of Phases
1
Number of Poles
1
Terminal Type
Plug-In
Interrupt Rating
10 kA
Trip Type
Long Time Instantaneous
Nomenclature

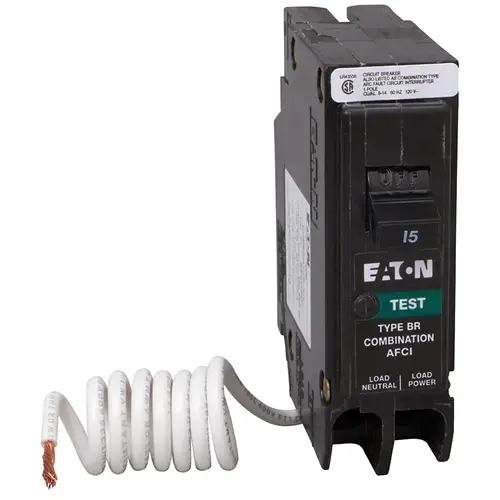

BRN115AFC BRKR AFCI PIGTAIL15A
Actuator Type
Magnetic Thermal
Current Rating
15 A
Suitable for: CPM CPL CBRPM CBRPL Load Center
An arc fault circuit interrupter is a device intended to provide protection from the effects of arc faults by recognizing characteristics unique to arcing and by functioning to de-energize the circuit when the arc fault is detected. As of January 1, 2015, the Canadian Electrical Code now requires that all branch circuits that supply 125 V, single-phase, 15 and 20 A receptacle outlets installed in dwelling unit shall be protected by a combination arc fault circuit interrupter(s) (series arc and parallel arc detection).
