30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Returnable
Yes
UL Listed
Yes
Height
2.50
Defective Code
A
Width
3.30
Circuit Protection Type
Plug In
Sub Brand
Cutler-Hammer
Mounting Type
Plug
Indoor or Outdoor
Indoor
Volts
120/240 V
Packaging Type
Bulk
Depth
3"
Number of Poles
2
Product Type
Circuit Breaker
Standard overload and short circuit protection in
Standard overload and short circuit protection in Cutler-Hammer, Westinghouse, Bryant, Challenger or Sylvania load centers. for CTL (circuit limiting) load centers with bus bar slots
AMPS
200 amps
CSA Listed
Yes
Each Weight
1.900 LB
Velocity
X
Hazardous Material
No
Alternative UPC
786676367202
ECCN
EAR99
Country Origin Code
DO
Length
6.50
Wire Size
2 AWG
Trip Type
Common
Operating Temperature
60 to 75 deg C
Type
Type BJ
Operating Frequency
50/60 Hz
Current Rating
200 A
Actuator Type
Magnetic Thermal
Interrupt Rating
10 22 kA
Dimensions
6-1/2 in L x 3-1/2 in W x 2-1/2 in H
Nomenclature

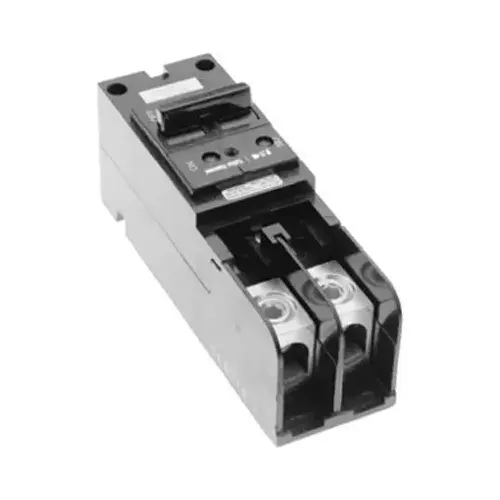

BJ-2200 BOLTIN MAIN BREAKR200A
Number of Phases
1
For use in single and 3-phase Type BR load centers 150 A and up. Requires two 1 in pole spaces on left side and two 1 in pole spaces on right side. No BJHDS hold down kit, necessary for using as a main or back feed device, sold separately. #2 to 300 kcmil wire range. 120/240 VAC, 10,000 AIC.
