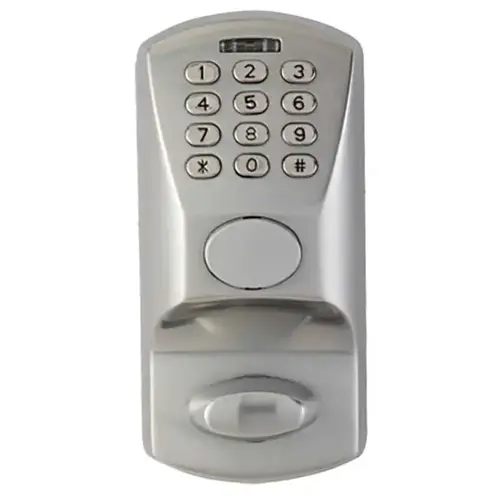

Kaba Access E1502-626-41 Electronic Pushbutton Deadbolt Lock With Key Override Satin Chrome
Item #: E1502-626-41 by Kaba Access
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Construction: Heavy-duty Grade 2 lockset, solid brass cast exterior housing with deadbolt, metal pushbuttons
- Backsets: Adjustable 2⅜" (60 mm) or 2¾" (70 mm)
- Minimum Stile Recommended: 4" (102 mm)
- Door Preparation: ASA 161—easily installs on door preparation with one additional through bore hole; wood or metal doors
- Door Thickness: 1⅝" (41 mm) to 2" (50 mm)
- Fire Rating: Meets UL 10C on fire-rated doors up to and including three hours UL fire-rated deadbolt
- Durability: BHMA 156.36, Grade 2; meets requirements of ANSI A156.25 for dust, rain, humidity, and salt spray corrosion tests
- Environmental: Outside and inside housing; -31 °F to 151 °F (-35 °C to 66 °C)
- Warranty: Two-year warranty from date of installation; built-in warranty counter in lock memory
Color
Satin Chrome
Color Code
626/US26D
Lock Platform
Deadbolt Lock
Package Qty
1
Base Material
Brass or Bronze
Minimum Stile Width
4 Inch
Manufacturer Parent
DormaKaba
Locking Device
Deadbolt
Finish Description
Satin Chrome
Function
Electronic Pushbutton Deadbolt
Grade
ANSI/BHMA Grade 2
Sub-Series
E1502-41
Fire Rated
Yes
Door Preparation
ASA 161
Operating Temperature
Outside and inside housing; -31 °F to 151 °F (-35 °C to 66 °C)
Cylinder Type
Conventional
Key Override Core Type
1539 6-pin cylinder
Programming Method
Keypad
Battery Used
Three AA Alkaline
Number of Access Codes
100
Door Thickness
1-3/8 to 2 Inch
Product Type
Electronic Deadbolt
Features
Requires No Wiring to or Through the Door; Multiple Users 100 Codes; The Most Recent 1000 Lock Events are Recorded in Memory; Including the Use of Mechanical Key Override; Software is Required to View Audit Events; Lock is Easily Programmed
Audit Buffer
The most recent 1,000 lock Events are recorded in memory, including the use of mechanical key override. Software is required to view audit Events.
Backset
2-3/8 Inch or 2-3/4 Inch
Warranty
2-year warranty from date of installation; built-in warranty counter in memory
Keyway
Kaba Schlage C
Series
E1500 Series
Operation
PIN access, Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours, Lockout
Power
Three AA Alkaline Batteries
Included Components
Lock Assembly, Installation Manual, Template, Quick Reference Guide, Operations Manual, and Required Hardware
Onboard Programming
Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software
Finish Family
Satin Chrome
Product Overview
E-Plex 1500 Deadbolt with Key Override, 100 Access Codes, 1,000 Audit Events, Satin Chrome
Provides exterior access by PIN code, while allowing free egress.
