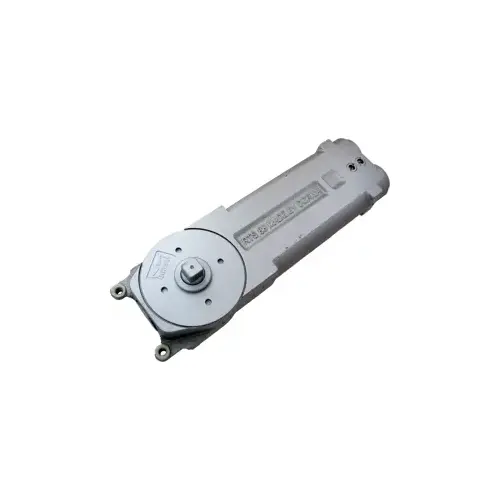

Overhead Concealed (OHC) Closer Body Only Size 3, 90 Degree Hold Open Aluminum Powder Coated

Roll over image to zoom in

DormaKaba Architectural Hardware RTS88-90HO689 Overhead Concealed (OHC) Closer Body Only Size 3, 90 Degree Hold Open Aluminum Powder Coated

Item #: RTS88-90HO689 by DormaKaba Architectural Hardware

See reviewsSee reviews
In Stock

$475.83

/each
SAVE UP TO 47.58

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features

Alternate Part Number-1

141050

Handing

Non-Handed

Closer Type

Concealed, Mechanical

Maximum Opening

90°

Finish code

689

Mounting

Body Only

Body Type

Cast Iron

Arm Function

Hold Open

Spring Tension

Size 3

Product Overview

Dorma RTS88 Series Overhead Concealed Door Closer

Aesthetic Advantages
The DORMA RTS88 overhead concealed door closer offers the perfect solution for those who prefer the aesthetic advantages of a concealed door closer.

Vandalism Protection
The RTS88 is an excellent replacement closer for problem entrances encountering vandalism of surface applied closers.

  • Concealed installation
  • For single and double-acting doors
  • Dependable and easy to Install
  • ARMS

  • 8812 - Offset slide arm and channel for aluminum, steel, or wood doors, hung on 3/4" offset pivots or 4-1/2" wide butt hinges. Requires a minimum 3/4" top door rail channel depth.

  • 8836S - End load arm specifically designed for tempered glass doors with a short top rail (patch fitting). Requires a minimum 7/8" top door rail channel depth.

  • 8837K - End load arm specifically designed to match templating of Kawneer end load arm.

  • 8831 - Standard side load arm for aluminum or steel doors. Requires a minimum 1/2" top door rail channel depth.

  • 8832 - Side load arm with channel for wood doors. Requires a 5/8" mortise depth.
  • COVER PLATES

  • 8563 — Cover plate for RTS Series closer when installed in aluminum header.
  • 8575 — Cover plate for RTS Series closer when installed in steel header.
  • 8561 — Cover plate for RTS Series closer when installed in wood header.
  • PIVOTS

    8570 - Adjustable side load floor pivot set for bottom door rail channel depth of 1-15/16". Base can be shortened for 1-9/16" bottom door rail channel depth. Bottom door clearance is adjustable from 5/16" to 1/2". Maximum weight capacity is 200 lb.

    8856 - Adjustable end load threshold pivot set for bottom door rail channel depth of 1-3/8". Bottom door clearance is adjustable from 3/16" to 7/16". Maximum weight capacity is 200 lb.

    8572 - Adjustable side load threshold pivot set for bottom door rail channel depth of 1-9/16". Bottom door clearance is adjustable from 3/16" to 3/8". Maximum weight capacity is 200 lb.

    7471K/7421 - Side load floor pivot set. Requires a 1-1/8" mortise depth. Provides a bottom door clearance of 5/16". Weight capacity when used with RTS Series closer is 250 lb. Recommended for wood doors or any door weighing in excess of 200 lb.

    8852 - Adjustable end load floor pivot set for bottom door rail channel depth of 7/8". Bottom door clearance is adjustable from 3/8" to 5/8". Maximum weight capacity is 200 lb.

    8853 - Adjustable end load floor pivot set for bottom door rail channel depth of 1-9/16". Bottom door clearance is adjustable from 1/4" to 1/2". Maximum weight capacity is 200 lb.

    8855 - Adjustable end load threshold pivot set for bottom door rail channel depth of 7/8". Bottom door clearance is adjustable from 3/16" to 7/16". Maximum weight capacity is 200 lb.

    8857 - Adjustable end load threshold pivot set for bottom door channel depth of 1-9/16". Bottom door clearance is adjustable from 3/16" to 7/16". Maximum weight capacity is 200 lb.

    MISCELLANEOUS ACCESSORIES

  • 8820J — Conversion bracket for replacement of existing overhead concealed closers. Utilizes existing side jamb mounting bracket to anchor RTS Series closer.
  • 8521E — Add-on spindle extension increases distance between closer and door by 1-3/16" (30 mm).
  • 8532 — Steel header mounting channel. Provides reinforcement required to install the RTS Series closer in an open-throat header.
  • 8511 — Offset slide arm cover. Conceals No. 8812 slide arm when door is in the closed position. The extruded aluminum cover is 48-1/4" long and is field-sized as required. Specify hand.
