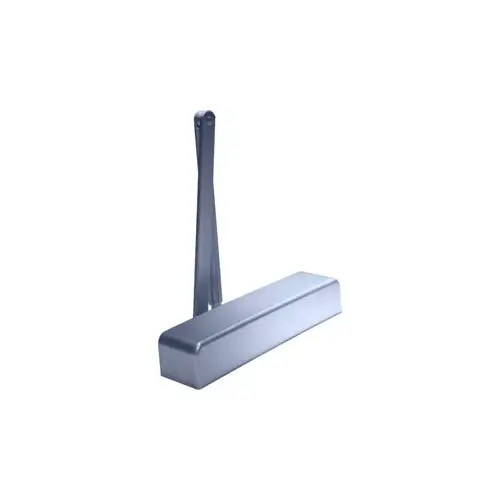

DormaKaba Architectural Hardware 8916DS 689 Heavy Duty Closer w/ DS Arm Satin Aluminum

Item #: 8916DS 689 by DormaKaba Architectural Hardware

See reviews See reviews

$459.00

/each
SAVE UP TO 45.90

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment

Alternate Part Number-1

149187

Grade

Grade 1

Cover

Full Plastic Cover

Handing

Non-Handed

Options

SN1

Closer Type

Mechanical, Surface

Maximum Opening

180°

Mounting

Parallel Arm

Arm Function

Non-Hold Open

Spring Tension

Adjustable 1 - 6

Dorma 8900 Series Door Closer

Heavy-Duty Surface Applied Door Closer

The 8900 door closer series designed to provide a highly flexible door control system suitable for institutional or high-traffic commercial applications.

Its hydraulic control system features a full range spring power adjustment and backcheck, along with a narrow projection full cover and flat form style arm.

Door closer certified for ANSI Grade 1.

PRODUCT DETAILS

Controlled opening with backcheck feature
The 8900 Series hydraulic backcheck feature protects doors and their adjacent structures. It's valve adjustment regulates backcheck intensity. In addition, a backcheck positioning adjustment for parallel arm applications provides a consistent range similar to regular and top jamb applications.

Long term performance
The 8900 Series heavy-duty, 10 million cycle closers represent the latest in door control technology, combining over a quarter century of proven performance with its hydraulic control system and modern architecturally styled aesthetics. It results in the perfect combination of durability, reliability, and appearance.

Barrier-free
The 8900 Series, with the fully adjustable spring, also meets barrier-free accessibility requirements.

TECHNICAL DETAILS

  • Available as 8916 with fully adjustable spring sizes 1–6.
    • Size 1 (5 lb opening force) meets interior barrier-free AD requirements.
  • 8916 may be used on doors up to 48" wide interior (42" wide exterior) and up to 180 lb.
  • 8956 available with adjustable spring sizes of 5–6 +50 percent for use on exceptionally wide, tall, or heavy doors.
  • Non-handed for regular, top jamb, and parallel arm applications.
  • Backcheck (BC) valve (standard) provides adjustable intensity hydraulic cushioning, preventing uncontrolled door opening to protect door and frame during abusive or abrupt opening.
  • POS backcheck positioning valve (standard) maintains an effective backcheck range on parallel arm applications.
  • Valve is accessible with the closer installed.
  • Full adjustment using BC, POS, Sweep and Latch valves standard.
  • Optional delayed action (DA) adjustable with separate independent valve to allow for unobstructed passage through opening.
  • Full plastic cover standard.
  • Full metal or full plastic slotted covers optional.
  • All tamper-resistant (hex key) valve adjustments (including POS) accessible with closer installed.
  • Standard components required for three most popular mounting configurations (Reg., TJ, PA).
  • Standard fasteners include separate wood and metal screws and SN1 sex nuts for1-3/4" thick doors.
  • Full-sized templates enable accurate installation.
  • A variety of specialty arm options, interchangeable across most DORMA surfacecloser models.
  • Full complement of optional plates and brackets available for special applications.
  • Screw options include self drilling and tapping screws (DPK89) for steel door and frame applications or self tapping screws (TPK89) for aluminum door and frame applications.
  • Stainless steel (STA Series) model available.
  • Available with holder/release with (EMR Series) or without (EMF Series) photoelectric detector to control spread of smoke and fire.

    • 8916/8956 FEATURES

  • Spring size
    • (8916 shipped as size 4) 1–6
    • (8956) 5–6 + 50 percent
  • Non-handed– Standard
  • Parallel arm bracket – Standard
  • Full line of specialty function arms and plates – Standard
  • Backcheck positioning adjustment – Standard
  • Controlled closing with two adjustment valves – Standard
    • 180 deg. – 15 deg.
    • 15 deg. – 0 deg.
  • Backcheck – Standard
  • Hydraulic delayed action
  • Hold open
  • SN1 sex nuts for 1-3/4" thick doors included – Standard
  • Self-drilling screws
  • Self-tapping screws
  • Tamper-resistant TORX screws
  • Full cover (plastic) – Standard
  • Full cover (metal)
