kaba Model BTS80 8.5 Lb. Floor Mounted Door Closer Body in Cement Case

Roll over image to zoom in

DORMA BTS80BF kaba Model BTS80 8.5 Lb. Floor Mounted Door Closer Body in Cement Case

Item #: BTS80BF by Dorma

See reviews See reviews
In Stock

$739.96

/each
SAVE UP TO 74.00

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • 660 Lb. (299 kg) Capacity, 54" (1.37 m) Doors
  • Interchangeable Spindle Heights
  • Selective Multi-Point Hold Open Position
  • Variable Delayed Action
  • 25 Year Limited Warranty
  • UL Listed

Shipping Weight

17 lb (7.71kg)

Spring Size

8-1/2

Brand

Dormakaba

Closer Type

Floor Closer

Series

BTS80

Independent Closing and Latching Valves

Yes

Selective Hold Open (On Off)

Yes

Recommended Door Type

Aluminum, Hollow Metal

Similar

J990NHOD, J993HOD, J994HOD, J995BCD,

Interior Or Exterior Doors

Yes

Maximum Weight Center Hung

660

Non Stocked Parts and Acessories Special Order

Yes

Americans with Disabilities Act (ADA) Compliant

Yes

Closer Body With Box

Yes

Interchangeable Spindles

Yes

Maximum Door Width - Exterior

36 Inches

Selective Multi-Point Hold Open Positions

Yes

Maximum Door Width - Interior

36 Inches

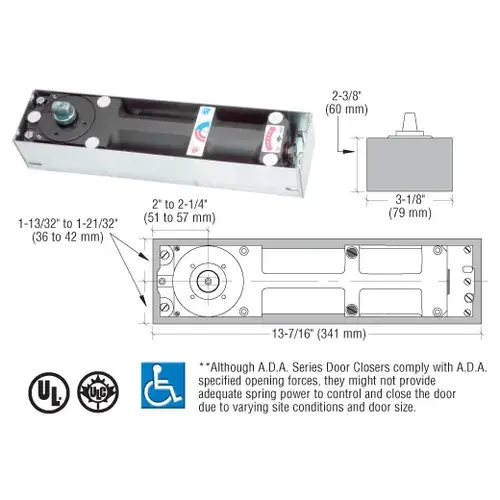

Body Length

13-7/16

Body Height

2-3/8

Body Width

3-1/8

Handing

Double Acting

UL Listed

Yes

Door Opening

180

Selective Hold Open

Yes

Dorma® Model BTS80 8.5 Lb. Floor Mounted Door Closer Body in Cement Case has universal, non-handed design uses a system of interchangeable spindles, and allows one basic door closer mechanism to be used for either single or double acting, center-hung or offset applications while accommodating virtually any floor covering or threshold height. The selective, multi-point hold open or variable delayed action feature makes this one of the most versatile door closers available. Dorma® Model BTS80 8.5 Lb. Floor Mounted Door Closer Body in Cement Case has 54" (1372 mm) interior width and offers a 660 Lb. (299 kg) Capacity. It is able to satisfy almost every application requirement. Once installed below floor level, the mechanism is almost completely concealed from view. Specifications: Maximum Door Weight: 660 Lbs. (299 kg) Maximum Interior Door Width: 54" (1372 mm) Maximum Exterior Door Width: 48" (1219 mm) Notes: Accessories such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available. This Door Closer is designed to open to a maximum of 180 degrees. An auxiliary floor or overhead stop is required to stop the door at less than 180 degrees. Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. Closer Body Only. Spindle is not included. Spindles are available to accommodate different heights and types: CRL9040S, or CRL9050S. DS 06/28/2016

From Manufacturer

The Dorma® BTS80 Series Floor Mounted Door Closers offer adaptability to almost any installation. The Dorma® Closer's compact body permits its use where a larger door closer would be prohibitive. The universal, non-handed design uses a system of interchangeable spindles, and will allow one basic door closer mechanism to be used for either single or double acting, center-hung or offset applications while accommodating virtually any floor covering or threshold height. The selective, multi-point hold open or variable delayed action feature makes this one of the most versatile door closers available. Accessories such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.
NOTE: This Door Closer is designed to open to a maximum of 180 degrees. An auxiliary floor or overhead stop is required to stop the door at less than 180 degrees.
SPECIFICATIONS:
Maximum Door Weight: 660 Lbs. (299 kg)
Maximum Interior Door Width: 54" (1372 mm)
Maximum Exterior Door Width: 48" (1219 mm)Important Notes

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. Closer Body Only. Spindle is not included. Spindles are available to accommodate different heights and types: CRL9040S, or CRL9050S.
