The Dormakaba BT75V Series Floor Mounted Door Closers offer adaptability to almost any installation. The Dormakaba Closer's compact body permits its use where a larger door closer would be prohibitive. The universal, non-handed design uses a system of interchangeable spindles, and will allow one basic door closer mechanism to be used for either single or double acting, center-hung or offset applications while accommodating virtually any floor covering or threshold height. Available in 90 or 105 hold open and no hold open full swing to 175 models. Accessories such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.
Product Warning:
Closer Body Only. Spindle is not included. Spindles are available to accommodate different heights and types: CRL9040S, or CRL9050S.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

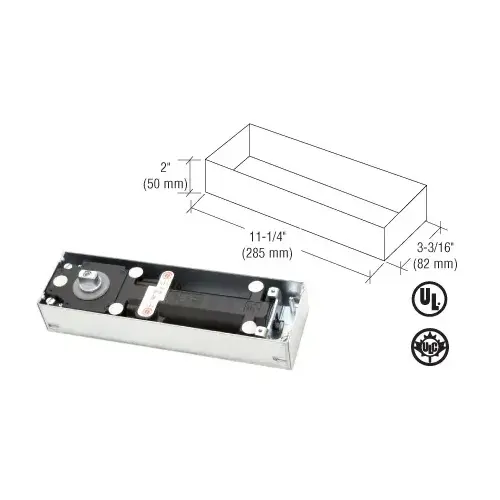

DORMA BTS75V90H0 kaba Model BTS75V Adjustable Spring Power Size 1 to 4, 90 degree Hold Open Floor Mounted Door Closer Body in Cement Case
Item #: BTS75V90H0 by Dorma
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 25 Year Limited Warranty
- Accommodates Doors Up to 42" (1.07 m) Wide and Weight up to 260 Lbs.
- Adjustable Spring Power Size 1 to 4
- ANSI A156.4 Grade 1, UL and CUL Listed
Shipping Weight
15 lb (6.8kg)
Brand
Dormakaba
Type
90 Degree Hold Open
Body Length
11-1/4
Body Height
2
Body Width
3-1/6
Handing
Double Acting
Spring Size
1.2.3.4
Hold Open
90°
UL Listed
Yes
Closer Type
Floor Closer
Series
BTS75V
Independent Closing and Latching Valves
Yes
Recommended Door Type
Aluminum, Hollow Metal
Similar
BTS802, J993HOD, J990NHOD, J904HOD
Interior Or Exterior Doors
Yes
Maximum Weight Center Hung
260 Pounds
Non Stocked Parts and Acessories Special Order
Yes
Closer Body With Box
Yes
Interchangeable Spindles
Yes
Maximum Door Width - Exterior
42 Inches
Maximum Door Width - Interior
42 Inches
Product Overview
The Dormakaba BT75V Series Floor Mounted Door Closers offer adaptability to almost any installation. The Dormakaba Closer's compact body permits its use where a larger door closer would be prohibitive. The universal, non-handed design uses a system of interchangeable spindles, and will allow one basic door closer mechanism to be used for either single or double acting, center-hung or offset applications while accommodating virtually any floor covering or threshold height. Available in 90 or 105 hold open and no hold open full swing to 175 models. Accessories such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.
Product Warning:
Closer Body Only. Spindle is not included. Spindles are available to accommodate different heights and types: CRL9040S, or CRL9050S.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
