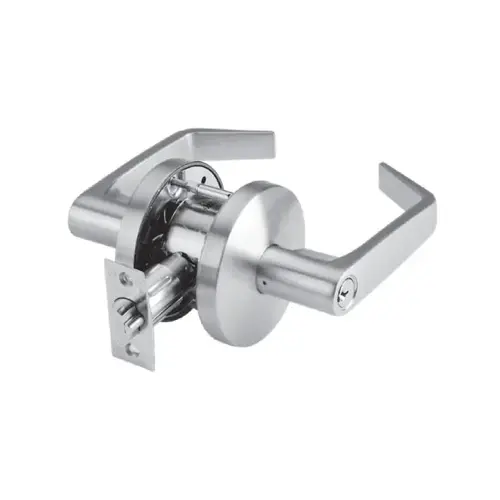

DORMA C553-D-LRC-626 C553 Entry Lever Lockset, Satin Chrome

Item #: C553-D-LRC-626 by Dorma

See reviewsSee reviews

$152.27

/each
SAVE UP TO 15.23

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Projection

2.7500

Finish

Satin Chrome

Grade

ANSI/BHMA Grade 2

Lever Length

4.7500

Backset

2-3/4 Inch

Keyway

Schlage C

Function

53-Entry

Door Thickness

1-3/8" to 1-3/4"

Strike

ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-3/16 Inch Lip, Square Corner

Bore Size

2.1250

Cylinder Type

Conventional Cylinder

Finish Description

Satin Chrome

Latch Number

15250

Strike Number

5001

Lever Style

LR-Lever

Keyblank Grouping

DORM_SCHL_C_6_1

Rose/Escutcheon Trim

C-Rose

ADA Approved

False

Keying Charges

CCAM

Product Type

Cylindrical Lock

Series

C500 Series

Warranty

1 year limited

Color Code

626/US26D

Application

Hotels; Apartments; Churches; Municipal Buildings; Retail Complexes; Offices; Warehouses

Hand

Non-Handed

Handle Type

Lever

Rose Diameter

3-5/16 Inch

Latch Throw

1/2 Inch

ANSI Function

F109

Latch Type

Deadlocking

Door Cross Bore

2.125 Inch

Standards

ANSI/BHMA A156.2; UL and CUL Listed

Cylinder Type Used

Conventional

Function Description

Pushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.

Front Size

1 Inch

Function Family

Entry/Entrance/Office

Strike Lip

1-3/16 Inch

Product Projection

2-3/8 Inch

Features

Special Auxiliary Support Springs; Adjustable

Manufacturer Parent

DormaKaba

Lever Length-Inches

4.75 Inch

Latch Corner

Square

Knob/Lever Size

4-1/2 Inch

Latch Bolt Material

Stainless Steel

Lever Style Family

Straight Return Lever

Sub-Series

CL_Cylindrical_Locks_Dorma_71

Strike Type

ANSI Strike

ADA Compliant

YES

Finish Family

Satin Chrome

Included Components

(2) Keys; Special Auxiliary Support Springs

Strike Size

1-1/4" x 4-7/8"

Cylinder Material

Brass
