Dormakaba 3 Offset Tapered Type Spindles are available in various heights to accommodate different threshold and finished floor heights, and can be used with all CRL Models, Jackson 900, and Dormakaba BT575 and BTS80 Floor Mounted Door Closers. The Dormakaba 3 Offset Flat Tapered Spindles are handed and provide a preload pressure to hold door in the closed position against the stop. They allow the use of all center-hung and offset bottom arms intended for use with this type of spindle, as well as CRL Patch Fitting Inserts.
Product Warning:
To determine the actual door clearance from finished floor, add 3/16" (5 mm) to the collar height. Example: 1/8" (3 mm) collar height + 3/16" (5 mm) = 5/16" (8 mm) door clearance from finished floor. The Spindle Is Marked With 'L' For Pull Side - Left Hinged Doors. The Handing Is "RH" Intended For Use With Right Swing Doors.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

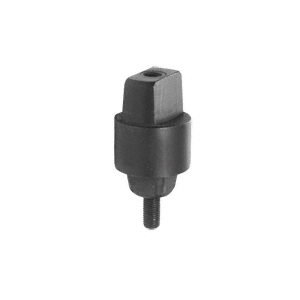

DORMA 80010RH kaba 3/4" Clearance, 3 Right Hand Offset Tapered Type Spindle
Item #: 80010RH by Dorma
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For Use with All CRL Models, Jackson® 900, and Dormakaba® BT575 and BTS80 Series Floor Mounted Door Closers
- Three Available Door Clearance Heights 5/16", 1/2", and 3/4" (8, 12.7, and 19 mm)
- Handed, Flat Tapered Type
Brand
Dorma
Handed
Right
Grade
ANSI/BHMA Grade 1
Handing
RH
Product Type
Door Control Part/Accessory
Style
Flat Tapered
Offset
YES
Collar Height (Inches)
3/4
Standard Door Cleareance
11/18
Function
Spindle
ADA Compliant
No
Product Material
Zinc
Standards
ANSI/BHMA
Function Family
Part/Component
For Use With
BTS
Hand
Right Hand
Series
Parts/Accessories
Manufacturer Parent
DormaKaba
Sub-Series
80010-RH
Collar Height
3/4
Product Overview
Dormakaba 3 Offset Tapered Type Spindles are available in various heights to accommodate different threshold and finished floor heights, and can be used with all CRL Models, Jackson 900, and Dormakaba BT575 and BTS80 Floor Mounted Door Closers. The Dormakaba 3 Offset Flat Tapered Spindles are handed and provide a preload pressure to hold door in the closed position against the stop. They allow the use of all center-hung and offset bottom arms intended for use with this type of spindle, as well as CRL Patch Fitting Inserts.
Product Warning:
To determine the actual door clearance from finished floor, add 3/16" (5 mm) to the collar height. Example: 1/8" (3 mm) collar height + 3/16" (5 mm) = 5/16" (8 mm) door clearance from finished floor. The Spindle Is Marked With 'L' For Pull Side - Left Hinged Doors. The Handing Is "RH" Intended For Use With Right Swing Doors.
