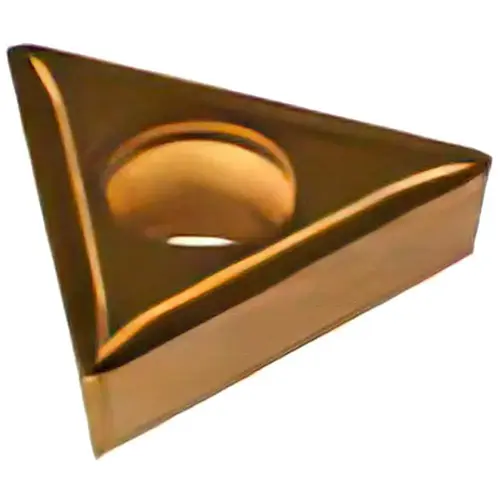

TCMT32.52-PEM DPC25UT Carbide Turning Insert

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Dorian Tool 73310171918Click To Copy TCMT32.52-PEM DPC25UT Carbide Turning Insert

Item #: 73310171918 by Dorian Tool

See reviewsSee reviews
See reviews summary
In Stock

$23.61

/each
SAVE UP TO 2.36

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 25 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Standards

ANSI

Included Angle

60

Insert Material

Carbide

Series

TCMT-PEM

Side Clearance

Positive

Coating Process

CVD

Coating/Finish

Al2O3

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

TCMT-32.52-PEM-DPC25UT

Material Grade

C5

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.6496

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Maximum Depth of Cut (Decimal Inch)

0.2360

Multi-use Tool

No

Rake

Positive

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/32

Insert Shape

T - Triangle

Clearance Code

C

Rake Angle

7

Insert Shape Code

T

Chip Breaker

PEM

Insert Style

TCMT

Insert Size Code

32.52

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1780

Relief Angle

7

Inscribed Circle (Inch)

3/8

Hole Diameter (Mm) ( - 0 Decimals)

4.52

Maximum Depth of Cut (mm)

5.99

Manufacturer Grade

DPC25UT

ISO Size Code

16T308

Grade Characteristics

Steel (P) - High Wear-Resistance to High Toughness

ANSI Size Code

32.52

ISO Insert Code

TCMT16T308

Iso Code

TCMT-16T308-PEM-DPC25UT

ANSI Insert Code

TCMT32.52

Product Overview
TCMT32.52-PEM DPC25UT Carbide Turning Insert Al2O3/TiCN/Al2O3/TiCN Finish, 3/8" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle
