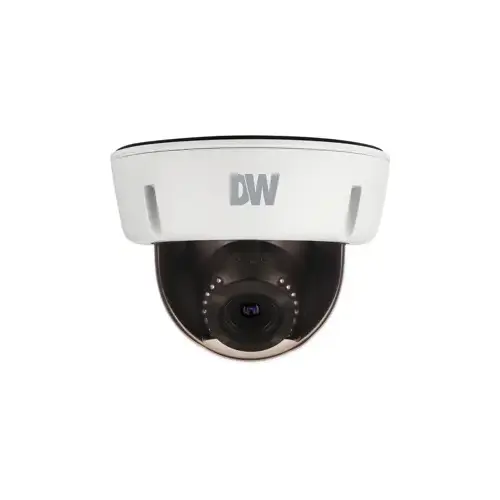

Digital Watchdog DWC-V6263WTIR 2.1MP Indoor/Outdoor Dome Camera w/IR

Item #: DWC-V6263WTIR by Digital Watchdog

See reviewsSee reviews
In Stock

$444.21

/each
SAVE UP TO 44.42

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Alternate Part Number-1

173812

Product Overview

DW Star-Light 2.1MP Universal HD over Coax Vandal Dome Camera (DWC-V6263WTIR)

Star-Light 2.1MP Universal HD over COAX cameras: deliver crystal clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI and all analog signals to 960H. The vandal dome cameras are IP66 rated and include CleanView dome treatment, that repels water, dust and grime. Star-Light Universal HD over COAX cameras are engineered to work with our VMAX A1 Universal HD over COAX DVRs using your existing coax infrastructure for a cost-effective, high resolution surveillance solution.

FEATURES:

  • Universal HD over Coax technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support.
  • Star-Light super low light technology.
  • 2.1MP/1080p 1/3" image sensor at real-time 30fps.
  • 2.8 ~ 12mm varifocal p-iris lens.
  • True wide dynamic range (WDR).
  • OSD control via Coaxial (UTC).
  • CleanView hydrophobic dome coating repels water, dust and grease.
  • 100' Smart IR with intelligent camera sync.
  • Smart DNR 3D digital noise reduction.
  • True day/night mechanical IR cut filter.
  • De-Fog extreme weather image compensation.
  • Highlight masking exposure (HME).
  • Auto sensing 24VAC/12VDC with line lock.
  • Easy icon driven OSD menu with built-in joystick.
  • Programmable Privacy Zones.
  • Auto gain control (AGC).
  • Backlight compensation (BLC).
  • Auto white balance (AWB).
  • IP66 certified weather and tamper resistant.
  • IK-10 impact rated.
  • 5 year warranty.

    • SPECIFICATIONS:

  • Image:
    • Image sensor: 2.1MP/1080p 1/2.7" CMOS.
    • Active pixels: 1944 (H) x 1092 (V).
    • Scanning system: Progressive scan.
    • Frequency: 60Hz / 50Hz.
    • Signal technology: Universal HD over Coax technology with HD-Analog, HD-TVI, HD-CVI to 1080p and all analog to 960H signal support.
    • Synchronization: Internal.
    • Resolution: 1920 x 1080 (1080p).
    • Minimum scene illumination: 0.3 lux (color); 0 lux (B&W).
    • S/N ratio: 55dB.
    • Video 0utput: HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H.
  • I/O:
    • Alarm output: 1 alarm output.
  • Lens:
    • Focal length: 2.8 ~ 12mm.
    • Lens type: Varifocal p-iris lens.
    • Field of view (FoV): 91 - 28°.
    • IR distance: 100ft range.
  • Operational:
    • Shutter mode: Auto, manual, FLC.
    • Shutter speed: 1/30 - 1/30,000.
    • Backlight: On, off.
    • Star-Light (Sense-up): Off, x2 – x32.
    • Wide Dynamic Range (WDR): True WDR, off, on.
    • Wide Dynamic Range (WDR) dB: 100dB.
    • Dynamic range compressor (DRC): Off, low, middle, high.
    • Smart DNR 3D digital noise reduction: Off, low, middle, high.
    • White balance: Auto / auto-ex / preset / manual.
    • Day and night: Auto, day (color), night (B/W).
    • Mirror/ flip: Yes.
    • Auto gain control: 0 ~ 10.
    • Motion detection: Yes.
    • Privacy zones: 16 programmable privacy zones.
    • Sharpness: 0 ~ 10.
    • Gamma: 0.45 ~ 0.75.
    • De-fog: On, off.
    • RS485 / UTP built-in: Pelco D / Pelco C.
  • Environmental:
    • Operating temperature: - 4°F ~ 122°F (- 20°C ~ 50°C).
    • Operating humidity: 10–90% RH (non–condensing).
    • IP rating: IP66 certified weather and tamper resistant.
    • IK rating: IK10-rated impact resistant.
    • Other certifications: FCC, CE, ROHS.
  • Electrical:
    • Power requirements: DC12V / AC24V dual-voltage.
    • Power consumption: DC12V (LED OFF): 2.94W, DC12V (LED ON): 5.22W; AC24V (LED OFF): 2.5W, AC24V (LED ON): 4.35W.
  • Mechanical:
    • Material: Aluminum vandal housing, polycarbonate dome.
    • Dimensions: 5.7"(145mm) x 4.26"(108.3mm).
    • Weight: 1.65lbs (0.75kg).

    ACCESSORIES (Optional):

  • DWC-V1WM: Wall mount bracket.
  • DWC-V1JUNC: Junction box.
  • DWC-V1CNM: Corner mount.
  • DWC-V1CM: Ceiling mount bracket.

    • FINISHES:

  • » N/A - White
