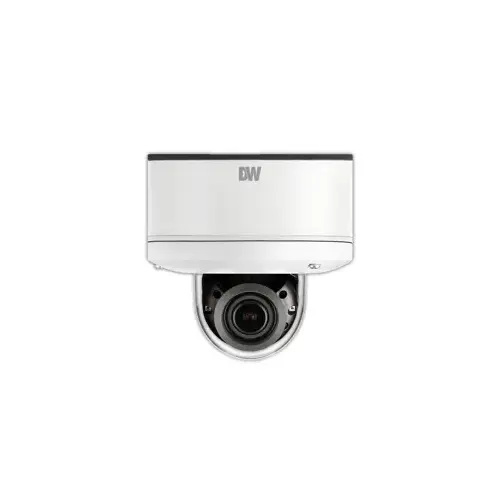

5 MP In/Outdoor Snapit Vandal Dome Camera

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Digital Watchdog DWC-MV45WIATWClick To Copy 5 MP In/Outdoor Snapit Vandal Dome Camera

Item #: DWC-MV45WIATW by Digital Watchdog

See reviewsSee reviews
See reviews summary
In Stock

$992.27

/each
SAVE UP TO 99.23

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 5 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Alternate Part Number-1

173808

Product Overview

DW MEGApix IVA 5MP color IP dome camera (DWC-MV45WiATW)

MEGApix IVA IP camera: is your gateway to powerful video analytics features. It is NDAA/TAA compliant and provides 5MP resolution at real-time 30fps. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera includes a 2.7 ~ 13.5mm vari-focal p-iris lens with motorized zoom and auto-focus, simultaneous H.265/H.264/MJPEG codec support, Star-Light Plus color in near-total darkness technology for quality video in any lighting condition and Cold Start at - 40° F/- 40° C. The unique Snapit housing is easy to install, includes CleanView dome treatment and is IP68-rated. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

FEATURES:

  • 5MP 1/2.8" image sensor at real-time 30fps.
  • Star-Light Plus color in near-total darkness technology.
  • Intelligent Video Analytics (IVA).
  • Extended Intelligent Video Analytics (IVA+ license required).
  • Seamless integration and control of IVA rules with DW Spectrum IPVMS.
  • Reduce false alarms.
  • Increase your recording storage with logic rules and smart recording.
  • 2.7 ~ 13.5mm vari-focal p-iris lens with motorized zoom and auto-focus.
  • True Wide Dynamic Range (WDR).
  • Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming.
  • Cold Start - 40°F (- 40°C).
  • 100' Smart IR with intelligent camera sync.
  • CleanView hydrophobic dome coating repels water, dust and grease.
  • Snapit easy installation camera.
  • Smart DNR 3D digital noise reduction.
  • True day/night with mechanical IR cut filter.
  • Programmable privacy zones.
  • Auto gain control (AGC).
  • Auto white balance (AWB).
  • Motion detection.
  • Two-way audio.
  • Micro SD/SDHC/SDXC class 10 card slot (card not included).
  • Alarm sensor input and relay output.
  • PoE class 3 and DC12V.
  • UL listed.
  • NDAA/TAA compliant.
  • IP68 dust-tight and waterproof.
  • IK 10-rated impact-resistant.
  • 5 year warranty.

    • SPECIFICATIONS:

  • Image:
    • Image sensor: 5MP 1/2.8" CMOS.
    • Total pixels: 2592(H) X 1944(V).
    • Minimum scene illumination: 0.08 lux (color), 0 lux (B/W).
    • Video output: Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio.
  • Lens:
    • Focal length: 2.7 ~ 13.5mm, F1.4.
    • Lens type: Vari-focal p-iris lens with motorized zoom and auto-focus.
    • HFOV / VFOV: 96° ~ 31° / 70° ~ 24°.
    • IR distance: 100ft range.
    • Optical zoom: x5 optical zoom.
  • I/O:
    • Audio in / out: 1/1.
    • Audio compression: G.711.
    • Alarm in / out: 1/1.
  • Operational:
    • Intelligent Video Analytics:
      • IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper.
      • IVA+ license: object removed, tailgating, direction, stopped, appear, disappear, object left.
    • Shutter mode: Auto, manual, anti-flicker, slow shutter.
    • Shutter speed: 1/15 ~ 1/32000.
    • Slow shutter: 1/2, 1/3, 1/5, 1/6, 1/7.5, 1/10.
    • Auto gain control: Auto.
    • Day / night: Auto, day (color), night (B/W).
    • Smart DNR 3D digital noise reduction: 3D-DNR.
    • Wide dynamic range (WDR): True WDR, 120dB.
    • Privacy zone: 16 programmable privacy masks.
    • Mirror and flip: Yes.
    • Alarm notifications: Notifications via e-mail, FTP server, alarm output activation or SD card recording.
    • Memory slot: Micro SD / SDHC / SDXC (card not Included).
  • Network:
    • LAN: RJ45 (10/100Base-T).
    • Video compression type: H.265, H.264, MJPEG.
    • Resolution:
      • H.265: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF.
      • H.264: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF.
      • MJPEG: 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF.
    • Frame rate: Up to 30fps at all resolutions.
    • Video bitrate: 100Kbps ~ 10Mbps, Multi-rate for Preview and Recording.
    • Bitrate control: Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth).
    • Streaming capability: Dual-stream at different rates and resolutions.
    • IP: IPv4, IPv6.
    • Protocol: TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF.
    • Security: HTTPS (TLS), IP filtering, 802.1x, digest authentication (ID/PW).
    • ONVIF conformance: Yes.
    • Web viewer:
      • OS: Windows, Mac OS, Linux.
      • Browser: Internet Explorer, Google Chrome, Mozilla Firefox, Safari.
      • NOTE: Chrome browser is recommended for IVA configuration.
    • Video management software: DW Spectrum IPVMS.
  • Environmental:
    • Operating temperature: - 40°F ~ 122°F (- 40°C ~ 50°C).
    • Operating humidity: 10–90% RH (non–condensing).
    • IP rating: IP68-rated.
    • IK rating: IK10 impact-resistant.
    • Other certifications: UL listed, CE, FCC, RoHS.
  • ELECTRICAL:
    • Power requirement: DC12V, PoE IEEE 802.3af Class 3 (Adapter not Included).
    • Power consumption: DC12V: max 8.3W, PoE: max 10.5W.
  • MECHANICAL:
    • Material: Snapit aluminum vandal housing, polycarbonate dome.
    • Dimensions: 5.47"(139mm) x 4.93"(125.4mm).
    • Weight: 2.75 lbs (1.25kg).
    • Warranty: 5 years warranty.

    ACCESSORIES: (optional):

    • DWC-V4CMW: Ceiling mount bracket.
    • DWC-V4WMW: Wall mount bracket.

  • DWC-V4CMW: Ceiling mount bracket.
  • DWC-V4WMW: Wall mount bracket.

    • FINISHES:

  • » N/A - White
