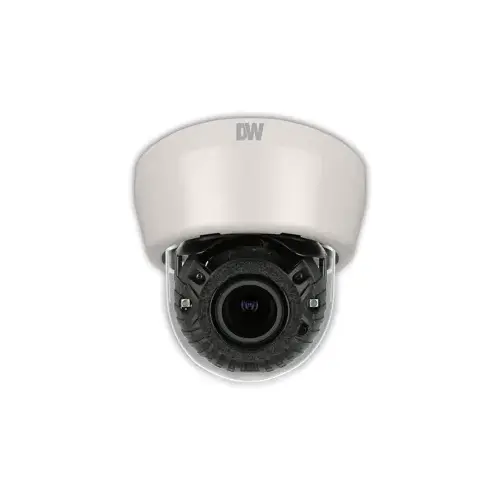

2.1 MP Indoor Dome 3.0-10.5mm

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Digital Watchdog DWC-MD421TIRClick To Copy 2.1 MP Indoor Dome 3.0-10.5mm

Item #: DWC-MD421TIR by Digital Watchdog

See reviewsSee reviews
HURRY! Low in stock

$660.48

/each
SAVE UP TO 66.05

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Alternate Part Number-1

173806

Product Overview

DW MEGApix 2.1MP/1080p indoor dome Snapit camera

MEGApix IP cameras: deliver crystal-clear images at 2.1MP/1080p resolution and real-time 30fps. The unique Snapit housing is easy to install and includes CleanView dome treatment. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

FEATURES:

  • 2.1MP/1080p 1/2.7" image sensor at real-time 30fps.
  • 2.8 ~ 12mm motorized zoom auto-focus p-iris lens.
  • True Wide Dynamic Range (WDR).
  • Dual codecs (H.264, MJPEG) with simultaneous streaming.
  • 100' Smart IR with intelligent camera sync.
  • Snapit easy installation housing.
  • Smart DNR 3D digital noise reduction.
  • True day/night mechanical IR cut filter.
  • Programmable privacy zones.
  • Auto gain control (AGC).
  • Auto white balance (AWB).
  • Motion detection.
  • Micro SD/SDHC/SDXC class 10 card slot (card not included).
  • Alarm sensor input.
  • Relay output.
  • Web server built-in.
  • PoE class 3 and DC12V.
  • ONVIF conformant, profile S.
  • NDAA compliant.
  • Black housing (DWC-MD421TIRB).
  • 5 year warranty.

    • SPECIFICATIONS:

  • Image:
    • Image sensor: 2.1MP/1080p 1/2.7" CMOS.
    • Total pixels: 1928 (H) x 1088 (V).
    • Minimum scene illumination: 0.12 lux (color), 0.0 lux (B&W).
    • Video output: Local video output CVBS 1.0V p-p (75?), 4:3 aspect ratio.
  • Lens:
    • Focal length: 2.8-12mm, F1.4.
    • Lens type: Motorized zoom auto-focus p-iris lens.
    • Field of view (FoV): 106° ~ 32°.
    • IR distance: 100ft range.
    • Optical zoom / digital zoom: x4.2 optical zoom.
  • I/O:
    • Audio in / out: 1/1.
    • Audio compression: G.711.
    • Alarm In/Out: 1/1/2017.
  • Operational:
    • Shutter mode: Auto, manual, anti-flicker, slow shutter.
    • Shutter speed: 1/30 ~ 1/8000.
    • Slow Shutter: 1 ~ 1/5,1/7.5, 1/15.
    • Auto gain control: Auto.
    • Day / night: Auto, day (color), night (B/W).
    • Smart DNR 3D digital noise reduction: 0 ~ 11.
    • Wide dynamic range (WDR): True WDR on, off.
    • Wide dynamic range (WDR) dB: 120dB.
    • Privacy zone: 16 programmable privacy masks.
    • Backlight Compensation (BLC): On / off / HSBLC.
    • Mirror & Flip: Yes.
    • Alarm notifications: Notifications via e-mail, FTP server or SD card recording.
    • Memory Slot: Micro SD / SDHC / SDXC up to 128GB (card not Included).
  • Network:
    • LAN: 802.3 compliance 10/100 LAN.
    • Video compression type: H.264, MJPEG.
    • Resolution: H.264: 1080p/720p/VGA/D1/CIF MJPEG: 1280 x 720/800 x 600/VGA/768 x 432/D1/CIF.
    • Frame rate: Up to 30fps at all resolutions.
    • Video bitrate: 100Kbps ~ 10Mbps, Multi-rate for preview and recording.
    • Bitrate control: Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth).
    • Streaming capability: Dual-stream at different rates and resolutions.
    • IP: IPv4.
    • Protocol: ONVIF, TCP/IP, UDP, autoIP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2).
    • Security: HTTPS(TLS), IP filtering, 802.1x, digest authentication (ID/PW).
    • ONVIF conformance: Yes.
    • Web viewer: OS: Windows, Mac OS, Linux; Browser: Internet Explorer, Google Chrome, Mozilla Firefox, Safari.
    • Video management software: DW Spectrum IPVMS.
  • Environmental:
    • Operating temperature: - 40°F ~ 122°F (- 40°C ~ 50°C).
    • Operating humidity: 10–90% RH (non–condensing).
    • Other certifications: CE, FCC, RoHS.
  • Electrical:
    • Power requirement: DC 12V, PoE (IEEE 802.3af Class 3). (adaptor not included).
    • Power consumption: DC12V: max 6.9W PoE: max 8.6W.
  • Mechanical:
    • Material: Snapit plastic housing, polycarbonate dome.
    • Dimensions: 4.72"(120mm) x 3.63"(92.4mm).
    • Weight: 0.66 lbs (0.3kg).

    FINISHES:

  • » DWC-MD421TIRB - Black
  • » DWC-MD421TIR - ivory
