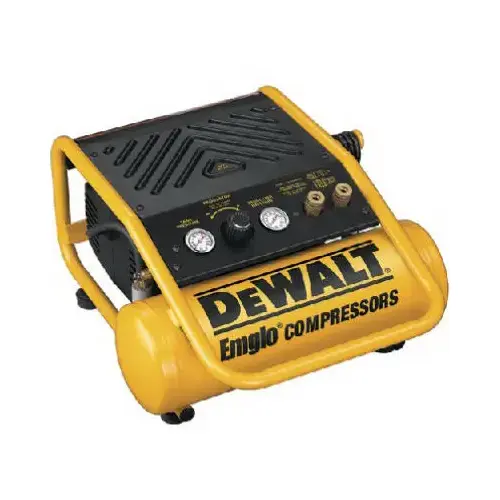

DEWALT D55140Click To Copy Portable Trim Compressor, 1 gal Tank, 0.3 hp, 120 V, 135 psi Pressure, 1 cfm Air
Item #: D55140 by STANLEY/BLACK & DECKER
UPC #: 028877553993
See reviewsSee reviews
In Stock
$267.89
/eachSAVE UP TO 26.79
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 33 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 75 SCFM delivered at 90 PSI pump, 1.0 gallon tank and 135 max PSI enables more nails to be fired and provides quicker recovery
- Enables more nails to be fired and provides quicker recovery
- allows for quieter operation (Tested per ISO3744)
- Low 71 dBA allows for quieter operation
- Low 2.6 A draw motor provides easy start-up and reduces breaker tripping
- Ball valve drain allows for quick and thorough tank draining
- Convenient cord wrap for easy storage
- Durable oil free pump provides extended maintenance-free operation
- Durable oil-free pump provides extended maintenance-free operation
- Roll cage and control panel provide protection to key compressor components
- Lightweight (24 lbs), thin (9.0") and compact design is easy to carry and store
- Low 71 dBA
- Lightweight (24 lb), thin (9 in) and compact design is easy to carry and store
- One quick coupler to easily support 1 nailer
- High-flow regulator for increased performance
Returnable
Yes
Weight
30 lb
Defective Code
B
Wheeled
No
Low 2.6 amp draw motor provides easy start-up and
Low 2.6 amp draw motor provides easy start-up and reduces breaker tripping
Air Delivery SCFM at 90PSI
0.75 CFM
Corded or Cordless
Corded
Tank Style
Horizontal
Handle Included
Yes
Tank Pressure Gauge
Yes
Volts
135 V
Maximum Pressure
135 psi
Tank Size
1 gal
Tank Material
Steel
Air Compressor Pump Type
Oil-Free
Stages
Single Stage
Product Type
Air Compressor
Horsepower
0.3 hp
Air Delivery SCFM at 40PSI
3.7 CFM
AMPS
2.6 amps
Each Weight
30.000 LB
Roll cage and control panel provide protection to
Roll cage and control panel provide protection to key compressor components
Velocity
X
Hazardous Material
No
Material
Steel
Dimensions
18.5 in L x 14.89 W x 11.75 in H
Warranty
3 Year Limited
Motor Type
Induction
Pump Type
Oil-Free
Frequency Rating
60 Hz
Air Flow Rate
1 cfm
Outlet Connection Size
1/4"
Pressure rating
135 psi
Sound Level
71 dBA
HP Rating
0.33 hp
Nomenclature
D55140 COMPRESSOR QUITE 1 GAL
Speed Rating
3100 rpm
Tank Type
Hot Dog
Current Rating
2.6 A
Tank Capacity
1 gal
Height
3.02
Length
22.00
Width
19.75
ECCN
EAR99
Country Origin Code
US
Number of Stages
1
Tool Only/Battery Included
Tool Only
Vendor Internet Sales Policy
Sale of this product on third-party online marketplaces (eg. Amazon, eBay, Walmart) or member-owned websites is prohibited without direct written authorization from Stanley Black & Decker.
Type
Trim Compressor
Nominal Voltage
120 V
UNSPSC
27131500
Nom. Width
14 1/2 in
Nom. Height
9 in
Nom. Length
19 in
Amps [Nom]
2.6 A
Frequency [Nom]
60 Hz
Noise Level [Nom]
71 dB
Operating Pressure [Nom]
135 psi
Power Cap. [Nom]
0.3 hp
Speed [Nom]
2,200 rpm
Flow @ Pressure
0.6 CFM @ 100 psi
Horse Power
0.3hp
CFM
0.6
Input Voltage
120
UNSPSC Code
27112800
Vendor Drop Ship
N
Product Overview
COMPRESSOR QUITE 135PSI 1 GAL
0.75 scfm delivered at 90 psi, 1 gal tank and 135 maximum psi enables more nails to be fired and provides quicker recovery. Durable oil-free pump provides extended maintenance-free operation. Low 2.6 A draw motor provides easy start-up and reduces breaker tripping. Belt drive. Low 71 dBA allows for quieter operation. Roll cage and control panel provide protection to key compressor components. Lightweight at only 24 lb, thin (9 in) and compact design is easy to carry and store. Ball valve drain allows for quick and thorough tank draining. One quick coupler to easily support one nailer. Convenient cord wrap for easy storage. High-flow regulator for increased performance.
