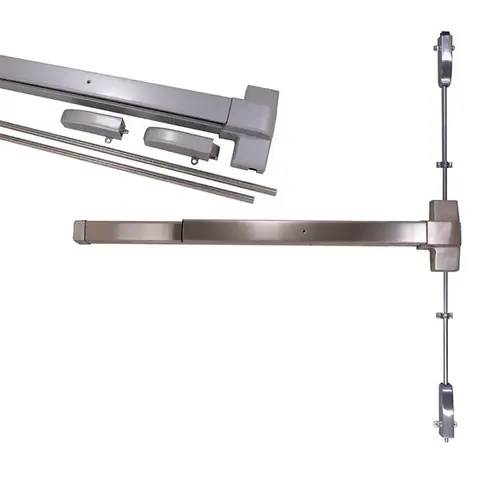

Design Hardware DH-2000V-33-32D 2000V-33 Vertical Rod Device With Hex Key Dogging Satin Stainless Steel
Item #: DH-2000V-33-32D by Design Hardware
See reviewsSee reviews
HURRY! Low in stock
$558.29
/eachSAVE UP TO 55.83
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Satin Stainless Steel
Door Height
7 Inch, 1-1/8 Inch x 2-1/4 Inch, Square Corner.
Handing
Right Hand Reverse
Device Rating
Panic Exit Hardware
Finish Description
Satin Stainless Steel
Stile
Wide Stile
For Door Height
7 Foot to 10 Foot
Function
Exit Only
Latch Type
Deadlocking
Hand
Right Hand Reverse
Grade
ANSI/BHMA Grade 1
Fire Rated
No
ADA Compliant
No
Device Centerline From Finished Floor
40 Inch
Center Case Dimensions
6" x 2-5/16" x 2-1/2"
Chassis Material
Steel
Application
Double Doors
Device Type
Surface Vertical Rod Device
Length
3
Standards
ANSI A156.3 - Grade 1; ANSI A117.1; UL Listed
Device Bar Projection
2-1/2" Undogged – Push bar Neutral; 1-13/16" Dogged – Push bar Depressed
Device Length
33 Inch
Product Type
Exit Device
Features
Heavy Duty; Easily Re-Handed in the Field
Dogging Options
Hex Key Dogging
Chassis Cover Material
Steel or Stainless Steel
For Door Width
2 Foot 8"
Series
2000V Pushpad
Included Components
Wood, Machine and Self Tapping Machine Screws; Latch Filler
Manufacturer Parent
Mesker Openings Group
Stile Width
4 Inch
Sub-Series
DH-2000V-33-32D
Function Family
Exit Only Device
Mechanism Case Dimensions
1-5/8" x 1-13/16"
Warranty
Limited lifetime
Recommended Door Undercut
1/4"
Finish Family
Stainless Steel
