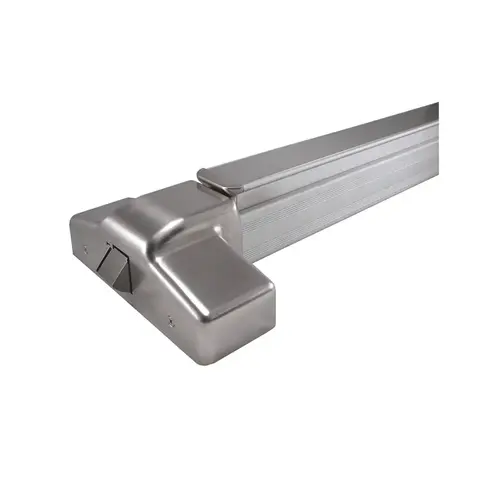

Design Hardware DH-1000R-33-32D 1000R-33 Rim Device hex key dogging, Satin Stainless Steel

ANSI: Meets & Exceeds ANSI A156.3 – Grade 1 Standards UL Listing: UL Listed for Panic Exit Hardware (Optional) Fire Rating: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on rated devices) ADA: Meets ADA requirements ANSI A117.1 with Lever Trim Handing: Non-Handed – Completely Reversible Construction: Heavy Duty Extruded Anodized Aluminum Channel & Steel Chassis Finishes: US3, US4, US10B, US26 & US32D on Headcover, Push bar & End Cap Marine Grade: Marine Grade 316 Stainless Steel option available Latch bolt: Deadlocking latch bolt with 5/8″ projection Strike: Roller Strike with 5/8″ projection & 1/8″ shim Dogging: 5/32” Hex Key Dogging Standard on Panic Exit Hardware only Cylinder Dogging: Cylinder Dogging Conversion Kits available for new or existing exit devices Device Lengths: 33″ for 3′-0″ wide doors and 42″ for 3-8″ to 4′-0″ wide doors Min. Door Width: 33″ & 42″ devices can be cut down to fit on 2-8″ wide door Center Case Dim: 8″ Height x 2 7/8″ Wide x 2 13/16″ Thick – 4 1/2″ Minimum stile required Mechanism Case Dim: 2 3/16″ Height x 2 3/16″ Wide Projection: 3 3/8″ Undogged – Push bar Neutral & 2 13/16″ Dogged – Push bar Depressed Fasteners: Wood, Machine & Self Tapping Machine Screws (F1000R includes thru bolts) Trim & Accessories: ASA & latch fillers included, Exterior Trims, Shim Kits & other accessories available Alarmed Exits: Exit Alarm Kit ALK-1000 available for new or existing devices Electrification: ELR – Electric latch retraction, ED – Electric dogging, REX – Request to exit, LBM – Latch bolt monitoring available, See electrified section Limited Lifetime Warranty
