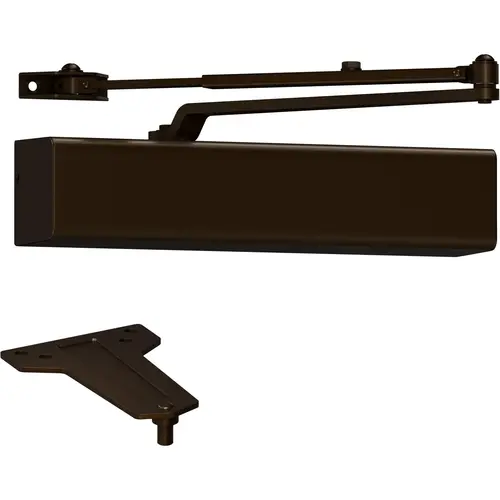

DCM1000.STD.FULL.RW/PA.DKBRZ Non-Hold Open Door Closer - Dark Bronze

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Dexter DCM1000-STD-FULL-RW/PA DB DCM1000.STD.FULL.RW/PA.DKBRZ Non-Hold Open Door Closer - Dark Bronze

Item #: DCM1000-STD-FULL-RW/PA DB by Dexter by Schlage

UPC #: 043156535880

See reviewsSee reviews
In Stock

$93.13

/each
SAVE UP TO 9.31

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Grade 1, UL / UL 10C Listed (non-hold open arms), ADA compliant at size 1
  • Adjustable spring size 1-6
  • 12" x 3⁄4" mounting hole pattern
  • Staked, independent adjustment values: sweep speed, latch speed, and back-check

Spring Size

1-6

Function

RW/PA-Regular Arm w/PA Shoe

Grade

ANSI/BHMA Grade 1

Type

Surface

Hand

Non-Handed

Color

Dark Bronze Painted

Color Code

690/US20

Mounting Style

Tri Mount

Hold Open

Without Hold Open

Closer Size

1-6

Mounting Location

Push or Pull Side

Package Qty

1

Special Marks

Complies with ADA accessibility guidelines

Finish

Dark Bronze

Series

DCM1000 Series

Mount

Push or Pull Side

Finish Description

Dark Bronze Painted

Product Type

Door Closer/Holder/Stop

Manufacturer Parent

Allegion

Handing

Non-Handed

Closer Arm Type

RW/PA

Mounting Hole Size

12" x 3/4"

Maximum Door Opening

180°

Sub-Series

DC_Surface Mounted Closers_dexter_commercial_8

ADA Compliant

YES

Mounting Type

Push or Pull Side

Application

Commercial

Box Dimensions (L x W x H)

13.9 x 5.5 x 2.91

Closer Cover

Full Plastic Cover

Function Family

Non Hold Open Door Closer

Standards

Grade 1 Compliant; UL 10C Listed

Door Size

2' 4" to 4' 6" (Interior); 2' 6" to 4' (Exterior)

Door Thickness

1-3/4 inch

Features

Staked Independent Adjustment Values: Sweep Speed, Latch Speed and Back Check

Product Material

Cast Aluminum

Fastener Type

Self-Tapping Machine Screws

Closer Arm Configuration

RW/PA

Closer Hold-Open

false

Warranty

5 year limited warranty

Finish Family

Dark Bronze

Alternate Part Number-1

156344

Item Weight

7.93 lbs

Package Width

5.5"

Package Length

13.9"

Package Height

2.91"
