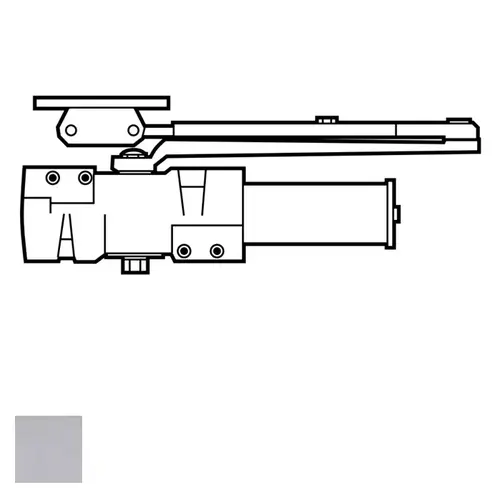

Arrow DC516-1 AL DC500 Series Heavy Duty Surface Applied Door Closer, Aluminum Painted
Item #: DC516-1 AL by Arrow
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Type
Surface
Color
Aluminum Painted
Color Code
689/US28
Mounting Style
Tri Mount
Hold Open
With Hold Open
Closer Size
1-6
Mounting Location
Push or Pull Side
Package Qty
1
Finish
Aluminum Painted
Grade
ANSI/BHMA Grade 1
Spring Size
1-6
Function
HO Arm with PA Bracket
Mount
Parallel Arm (Push Side)
Finish Description
Aluminum Painted
Product Type
Door Closer/Holder/Stop
Series
DC500 Series
Application
Institutions; High Traffic Applications
Hand
Non-Handed
Handing
Non-Handed
Warranty
10 year limited warranty
Mounting Type
Parallel Arm (Push Side)
Door Thickness
1-3/4 inch
ADA Compliant
YES
Finish Family
Aluminum
Included Components
Fully Threaded Self Reaming/Tapping Screws; Machine Nuts and Thru Bolts
Product Material
Cast Iron
Closer Cover
Full Plastic Cover
Standards
ANSI A156.4; UL/cUL listed
Closer Arm Type
Hold Open Arm
Closer Fluid
All Temperature Fluid
Function Family
Hold Open Door Closer
Fastener Type
Self Reaming and Tapping Screws
Features
Two non critical adjusting valves (sweep and latch) control closing speed; High tensile steel springs
Door Size
2' 4" to 4' 6" (Interior); 2' 6" to 4' (Exterior)
Maximum Door Opening
180°
Manufacturer Parent
Assa Abloy
Closer Hold-Open
true
Sub-Series
DC516-1-AL
