The CRL DC54 Size 4 Surface Mount Door Closer is perfect for most commercial applications. The Size 4 spring is suitable for interior doors up to 48" (122 mm) and exterior doors up to 42" (107 mm). Applicable door weight should be between 143 and 187 lbs. (65 and 85 kg). The closer is supplied with an adjustable back check feature to protect the doors and hardware from damage due to wind or violent door swings in the opening cycle. Both the closing and latching speeds are independently adjustable and will satisfy your customer's requirements for smooth operating door control. All CRL Surface Mounted Closers are UL listed and warranted for ten years. A Parallel Arm Bracket and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications. Optional accessories, such as Drop Plates and Hold Open Arms, are available for special installations.
Increase customer recognition with customized private labeling. CRL DC53, DC54 and DC55 models are available in plain boxes and are ready to be Private Labeled. To discuss the program and pricing in detail contact DK Hardware Sales.
Live Chat
24/7 Help Sign in for the Best Experience
Don't have an Account? Create an Account
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

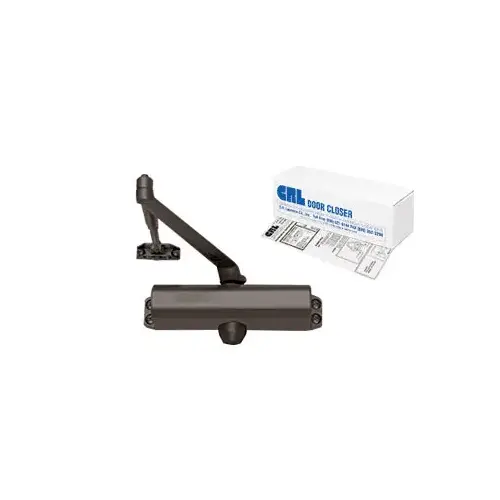

CRL DC54BRZ Dark Bronze ANSI Grade 1 Spring Size 4 Surface Mount Door Closer
Item #: DC54BRZ by CR Laurence
10 10
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Engineered for Commercial and Residential Use
- Dual Valve Closing and Latching Speed Control
- Reversible for Standard, Top-Jamb, and Parallel Arm Installations on Aluminum, Metal, and Wood Doors
- Aluminum and Dark Bronze Finishes
- Custom Colors Available
- ANSI A156.4 Grade 1
- UL Listed
Horizontal Mounting Holes
9-1/16" (230 mm) Center-to-Center
Vertical Mounting Holes
3/4" (19 mm) Center-to-Center
Closer Body Length
9-3/4" (247 mm)
Finish
Dark Bronze
Spring Size
4
UL Listed
Yes
Door Weight
143-187
Certification
ANSI A156.4 Grade 1
Closer Type
Surface Mount
Finish/Color
Dark Bronze
Horizontal Mounting Holes (Center To Center)
9-1/16
Maximum Door Width - Exterior
42 Inches
Vertical Mounting Holes (Center To Center) (Inches)
3/4
Maximum Door Width - Interior
48 Inches
Body Length
9-3/4
Vertical Mounting Holes Center To Center
3/4
The CRL DC54 Size 4 Surface Mount Door Closer is perfect for most commercial applications. The Size 4 spring is suitable for interior doors up to 48" (122 mm) and exterior doors up to 42" (107 mm). Applicable door weight should be between 143 and 187 lbs. (65 and 85 kg). The closer is supplied with an adjustable back check feature to protect the doors and hardware from damage due to wind or violent door swings in the opening cycle. Both the closing and latching speeds are independently adjustable and will satisfy your customer's requirements for smooth operating door control. All CRL Surface Mounted Closers are UL listed and warranted for ten years. A Parallel Arm Bracket and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications. Optional accessories, such as Drop Plates and Hold Open Arms, are available for special installations.
Increase customer recognition with customized private labeling. CRL DC53, DC54 and DC55 models are available in plain boxes and are ready to be Private Labeled. To discuss the program and pricing in detail contact DK Hardware Sales.
.
