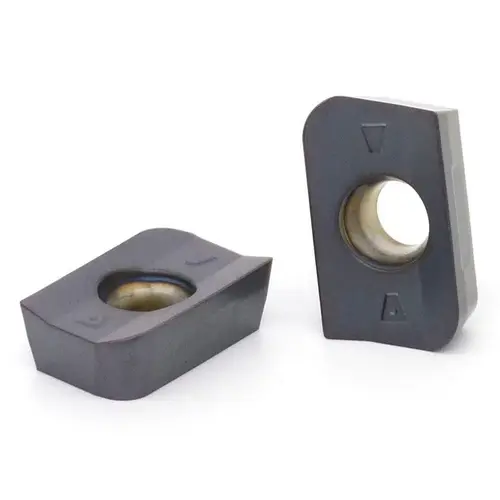

Milling Insert: DMP357, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Dapra 26760-XCP10Click To Copy Milling Insert: DMP357, Solid Carbide - pack of 10

Item #: 26760-XCP10 by Dapra

See reviewsSee reviews
See reviews summary

$186.72

/package
SAVE UP TO 18.67

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

T-Land

Material Application

Steel

Length (mm)

15.88

ANSI Code

APET160431-DMP35-GLH

Number of Cutting Edges

2

Insert Material

Solid Carbide

Series

APET

Coating Process

Uncoated

Coating/Finish

2-Slick High-Temp

Corner Radius (Decimal Inch)

0.1200

Length (Decimal Inch - 4 Decimals)

0.6250

Length (Inch)

5/8

Manufacturers Catalog Number

APET160431-DMP35-GLH

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750

Width (Inch)

3/8

Width (mm - 2 Decimals)

9.53

Coating Classification

GLH

Insert Holding Method

Screw

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Right Hand

Insert Shape

Square

Chip Breaker

DMP

Insert Style

APET

Insert Size Code

160431

Relief Angle

11.00

Included Angle Degree

85

Manufacturer Grade

DMP35

Single or Double Sided Insert

Single

Cutter Series Compatibility

SSEM

Length Range (Decimal Inch)

0.6000 to 0.6500

Inscribed Circle (mm)

2.00

Corner Radius (mm)

3.05

Product Overview
Milling Insert: DMP357, Solid Carbide Uncoated, 3/8" Wide
