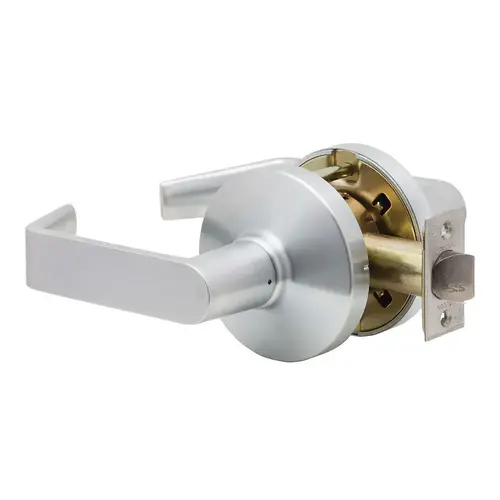

Falcon W101S D 626 W Series Passage Dane Lever Lock with 30206 Latch 30148 Strike Satin Chrome Finish
Item #: W101S D 626 by Falcon
UPC #: 043156243747
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Solid, pressure-cast zinc levers
- Door Thickness: 1-3/8” to 1-3/4” standard.
- Wrought brass or bronze roses over steel through-bolted rose inserts
- Backset: 2-3/4” standard; 2-3/8” also available.
- UL listed latch 1.5hrs
- Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
- Meets ANSI/BHMA A156.2, Series 4000, Grade 2
- Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.
- Handing: Locks are non-handed.
- Cylinder: Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.
- Competitor Cylinder: The W Series accepts standard 6-pin cylinders available from Falcon, as well as Schlage, Corbin-Russwin, Yale and Sargent.
- Keyways: “G” keyway standard on Falcon standard cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways. Schlage “C” keyway also available on standard cylinders, includes master key. Master keying available on all Falcon and Schlage “C” keyways.
- Trim: Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.
- Latches: 1/2” bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8” backset with 1” x 2-1/4” latch faces or 2-3/4” backset with 1-1/8” x 2-1/4” latch faces.
- Strikes: 4-7/8” x 1-1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.
- Screws: Furnished with combination screws for use in wood or metal doors and frames.
- ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.
- UL: 3-hour A label.
Approved for Commercial Use
Yes
Backset
2-3/4", 2-3/8"
ADA
Yes
Handle Material
Metal
Design
Dane
Series
W Series
Finish
Satin Chrome
Function
W101-Passage Latchset
Collection
Dane, W
Latch Faceplate
Square Corner
UL Listed
Yes
Handle Style
Lever
Configuration
Cylindrical Lockset
Cross Bore
2-1/8", 2-3/4"
Handing
Left, Reversible, Right
Product Class
Commercial
Theme
Modern
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Style
Contemporary/Modern
Shape
Flat, Straight
ANSI Certification
A156.2
Edge Bore
1"
Grade
Grade 2
Color Code
626/US26D
Package Volume
0
Lever/Knob Design
D - Dane
Package Qty
1
Rose/Escutcheon Design
3-5/16 In. Diameter
Special Marks
Complies with ADA accessibility guidelines
Base Material
Brass or Bronze
Application
Retail; Multi Family; Mix Use; Government; Industrial
Warranty
10 year limited
Handle Type
Lever
Rose Diameter
3-3/8 Inch
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Latch Throw
1/2 Inch
Finish Description
Satin Chrome
ANSI Function
F75
Latch Number
30-206
Latch Type
Spring Latch
Strike Number
30-148
Strike Type
ANSI Curved Lip
ADA Compliant
YES
Finish Family
Satin Chrome
Lever Style
DAN-Dane
Strike Size
1-1/4" x 4-7/8"
Rose/Escutcheon Trim
Round Rose
Door Cross Bore
2.125 Inch
Standards
ANSI/BHMA A156.2; UL Listed
Function Description
Latch retracted by knobs/levers at all times
Front Size
1-1/8" x 2-1/4"
Function Family
Passage/Hall/Closet
Strike Lip
1-5/16 Inch
Product Projection
2-1/2 Inch
Trim Material
Solid Pressure Cast Zinc (Lever)
Features
Heavy Duty Torsion Springs to Prevent Lever Sag; does Not Require Field Disassembly for Re Handing Allowing for Easy Installation and Maintenance
Product Type
Cylindrical Lock
Manufacturer Parent
Allegion
Lever Length-Inches
5 Inch
Latch Corner
Square
Knob/Lever Size
4-5/8 Inch
Latch Bolt Material
Stainless Steel
Lever Style Family
Straight Return Lever
Sub-Series
CL_Cylindrical_Locks_Falcon_6
Pack Size
1
Door Locks & Knobs Product Type
Passage Levers
Product Overview
Passage Latchset, Dane Lever, Satin Chrome
Whether your application is government/military, retail, industrial or multi-family, there's a W Series lock that fits perfectly. With two popular lever and knob styles as well as two popular rose diameters (large and small), Falcon W Series can match most commercial door trim. The Falcon W Series locks feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers. Our conventional cylinders are available in all Falcon conventional key sections as well as Schlage C keyway, which we now masterkey across the complete Falcon product line. The Falcon W Series offers quality product at a value price, and is backed by one of the best names in the business - Allegion.
Feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers.
