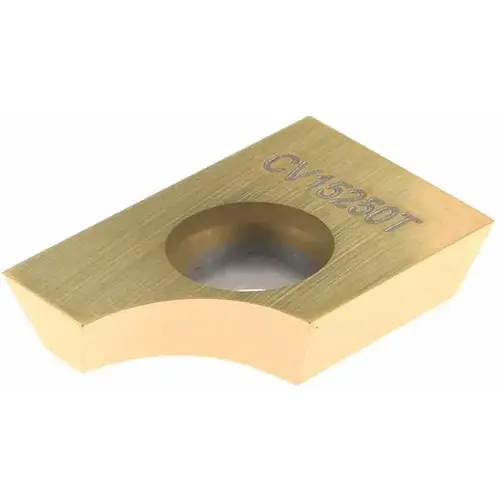

Milling Insert: C5, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Cutting Tool Technologies CV15250T-XCP10Click To Copy Milling Insert: C5, Solid Carbide - pack of 10

Item #: CV15250T-XCP10 by Cutting Tool Technologies

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$376.72

/package
SAVE UP TO 37.67

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

ANSI Code

CV15250T

Number of Cutting Edges

1

Standards

ANSI

Insert Material

Solid Carbide

Series

CV

Coating Process

PVD

Coating/Finish

TiN

Corner Radius (Decimal Inch)

0.2500

Length (Decimal Inch - 4 Decimals)

0.7500

Length (Inch)

3/4

Manufacturers Catalog Number

CV15250T

Material Grade

C5

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1560

Thickness (Inch)

5/32

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.2500

Multi-use Tool

No

Rake

Positive

Secondary Workpiece Material

Stainless Steel

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/4

Insert Shape

Rectangle

Rake Angle

0

Chip Breaker

Flat Top

Secondary Workpiece Material Code

M

Insert Style

CV

Insert Size Code

15250

Included Angle Degree

90

Cutting Edge Style

Ground

Material Application

Steel

Inscribed Circle (Inch)

1/2

Manufacturer Grade

C5

Single or Double Sided Insert

Single

Cutter Series Compatibility

CAV

Length Range (Decimal Inch)

0.7000 to 0.9000

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Concave Radius (Decimal Inch)

0.2500

Iso Code

CV15250T

Product Overview
Milling Insert: C5, Solid Carbide Coated, 0.156" Thick, 1/2" Wide
