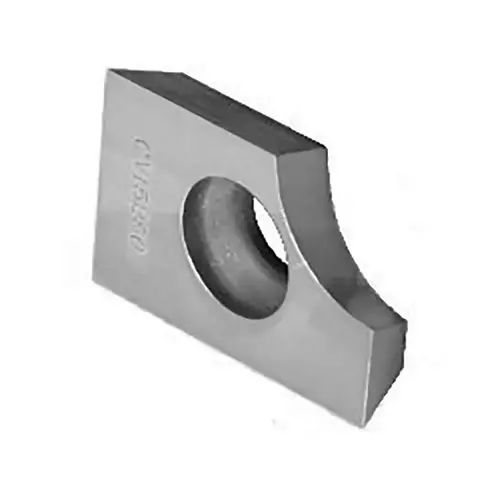

Milling Insert: C2, Solid Carbide Bright/Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Cutting Tool Technologies CV15190Click To Copy Milling Insert: C2, Solid Carbide Bright/Uncoated

Item #: CV15190 by Cutting Tool Technologies

See reviewsSee reviews
See reviews summary
In Stock

$32.20

/each
SAVE UP TO 3.22

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 17 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Ground

Material Application

Non-Ferrous Metal

ANSI Code

CV15190

Number of Cutting Edges

1

Standards

ANSI

Insert Material

Solid Carbide

Series

CV

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.1900

Length (Decimal Inch - 4 Decimals)

0.7500

Length (Inch)

3/4

Manufacturers Catalog Number

CV15190

Material Grade

C1

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

N

Thickness (Decimal Inch - 4 Decimals)

0.1560

Thickness (Inch)

5/32

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

Uncoated

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.1900

Multi-use Tool

No

Rake

Positive

Secondary Workpiece Material

Steel

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.5000

Insert Shape

Rectangle

Rake Angle

0

Chip Breaker

Flat Top

Secondary Workpiece Material Code

P

Insert Style

CV

Insert Size Code

15190

Included Angle Degree

90

Inscribed Circle (Inch)

1/2

Manufacturer Grade

C1

Single or Double Sided Insert

Single

Cutter Series Compatibility

CAV

Length Range (Decimal Inch)

0.7000 to 0.9000

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Concave Radius (Decimal Inch)

0.1900

Iso Code

CV15190

Product Overview
Milling Insert: C2, Solid Carbide Uncoated, 0.156" Thick, 1/2" Wide
